GOODENG 130-LS Horizontal Directional Drilling Machine
CHARACTERISTICS
DESCRIPTION
| Metric Unit | Imperial Unit | |
| Weight | 4750 kg | 10473 lbs |
| Dimension (LxWxH) | 5470×1670×2040 mm | 215×66×80 in |
| Max.Thrust&Pullback Force | 135 KN | 30373 lbf |
| Max.Thrust&Pullback Speed | 36 m/min | 118 ft/min |
| Max.Torque | 4500 N·m | 3320 ft·lb |
| Max.Rotation Speed | 193 r/min | 193 rpm |
| Engine Power | 93 kW | 125 hp |
| Max.Flow of Mud Pump | 200 L/min | 53 gal/min |
| Walking Speed | 2.5-4.5 km/h | 1.6-2.8mph |
| Max.Mud Pump Pressure | 8 MPa | 1160 psi |
| Entry Angle | 12°-22° | 12°-22° |
| Max.Climbing Gradient | 16° | 16° |
| Drill Rod Size | φ50/φ60×3000 mm | φ1.97/φ2.36×118 in |
| Drill Pipe Box Capacity | 48 pcs(4*12) | 48 pcs(4*12) |
| Suggest Reaming Diameter | ≤700 mm | ≤ 28 in |
| Suggest Crossing Length | ≤200 m | ≤ 656.17 ft |

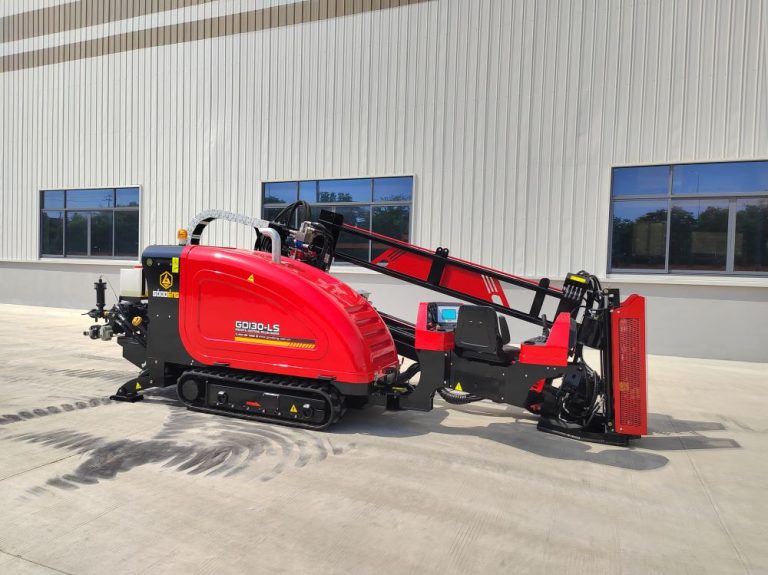

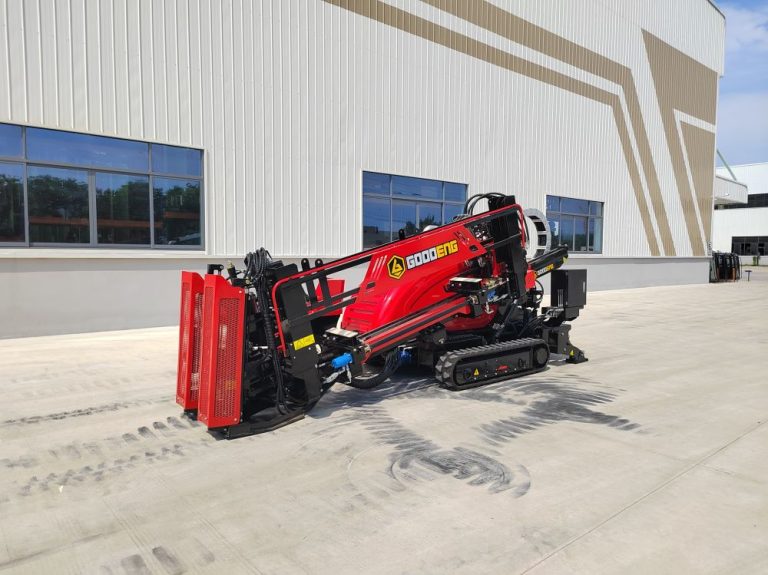

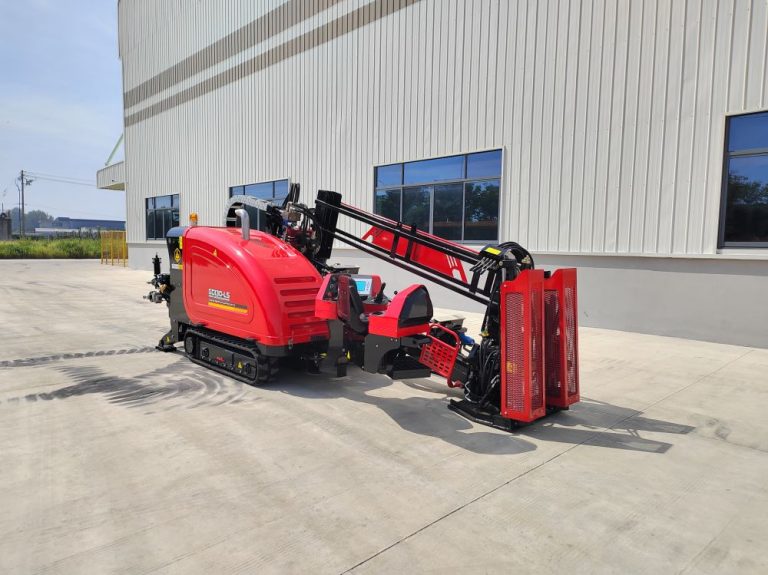

Introducing the Goodeng Trenchless HDD GS130-LS, a powerful Horizontal Directional Drilling/Boring/Tunnelling Machine/Rig designed for efficient and precise operations. Equipped with a rubber crawler walking system and adjustable speed control, this machine offers superior maneuverability on various terrains. The built-in mud pump and jet nozzle ensure effective mud system performance, while the rotating operating seat provides enhanced operator convenience. Additionally, optional features such as the automatic grease injector, rod-loading box, and hydraulic anchor further enhance the machine’s capabilities. Manufactured by Shanghai Goodeng International Co., Ltd., renowned for delivering high-quality and reliable trenchless drilling equipment, the GS130-LS is a cutting-edge solution for a wide range of drilling and tunnelling applications
Main Performance Characteristic
1.The machine is equipped with Cummins engine, with high efficiency, large power, low fuel consumption, low noise, and strong ability in construction.
2. Push & pull and rotation adopt manual handle, which is simple and quick to control.
3. Humanized-design worktable can rotate within 60°, with a wider view range, and high-quality seat that can be moved forward /backward is comfortable for operator.
4. Europe-American style surface, streamline sculpt, and elegant appearance, fully embody humanist designing idea. And it can be opened overall for flexible operation and daily convenient maintenance.
5. Small size and lightness is better for construction in city center, transferring and drilling in different kinds of working condition.
6. It is equipped with Vermeer type drill rod (Φ50 or Φ60×3000), with high quality, high reliability and superior performance.
7. Main assembly parts adopt components from international first-class hydraulic components manufacturer, which can greatly improve the performance of products reliability.
8. The rack and pinion push & pull system is adopted for the rig, so our machine is with high efficiency, low failure and stable working condition.
9. Optional auto loading, auto anchor, auto thread oil machine etc., can greatly improve working efficiency and reduce working intensity.
