GOODENG 360-LS Horizontal Directional Drilling Machine
CHARACTERISTICS
DESCRIPTION
| Metric Unit | Imperial Unit | |
| Weight | 20945 lbs | |
| Dimension (L×W×H) | 7300×2230×2310 mm | 287×88×91 in |
| Max.Thrust&Pullback Force | 380/760 KN | 85414/170829 lbf |
| Max.Thrust&Pullback Speed | 36 m/min | 118 ft/min |
| Max.Torque | 14000 N·m | 10326 ft·lb |
| Max.Rotation Speed | 135 r/min | 135 rpm |
| Engine Power | 153 kW | 205 hp |

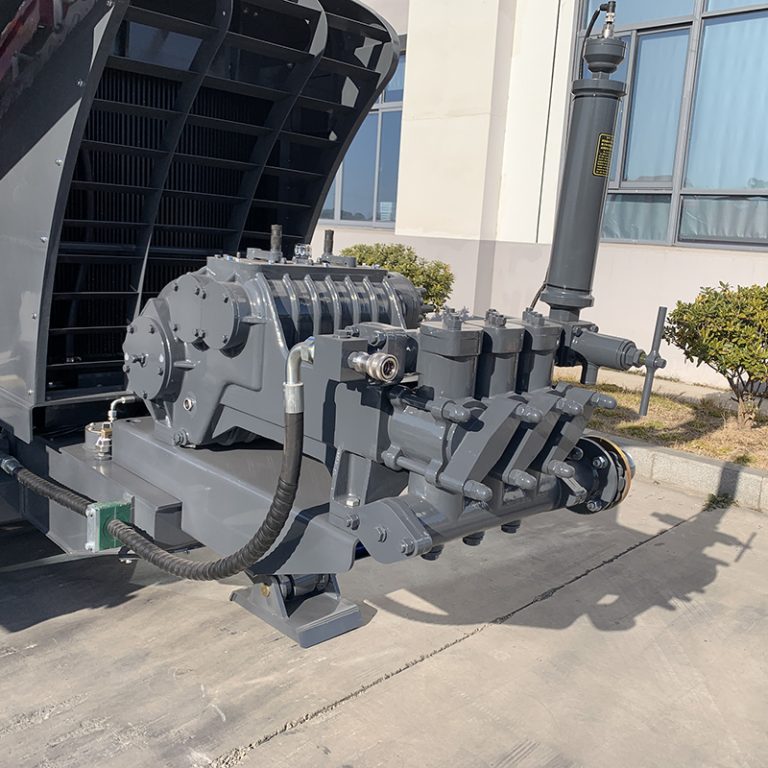

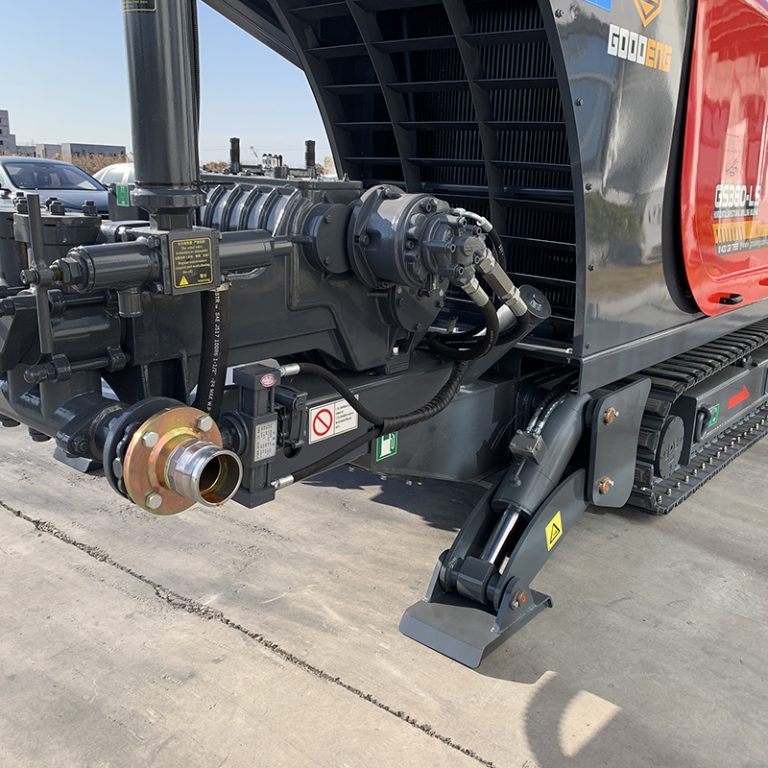

| Max.Flow of Mud Pump | 400 L/min | 106 gal/min |
| Walking Speed | 0-2.5/4 km/h | 0-1.6/2.5 mph |
| Max.Mud Pump Pressure | 8 MPa | 1160 psi |
| Entry Angle | 13°-23° | 13°-23° |
| Max.Climbing Gradient | 18° | 18° |
| Drill Rod Size | φ73-φ76×3000 mm | φ2.87-φ2.99 × 118.11 in |
| Drill Pipe Box Capacity | 36 pcs(4×9) | 36 pcs(4×9) |
| Suggest Reaming Diameter | ≤φ1000 mm | ≤ φ39.37 in |
| Suggest Crossing Length | ≤450 m | ≤ 1476 ft |

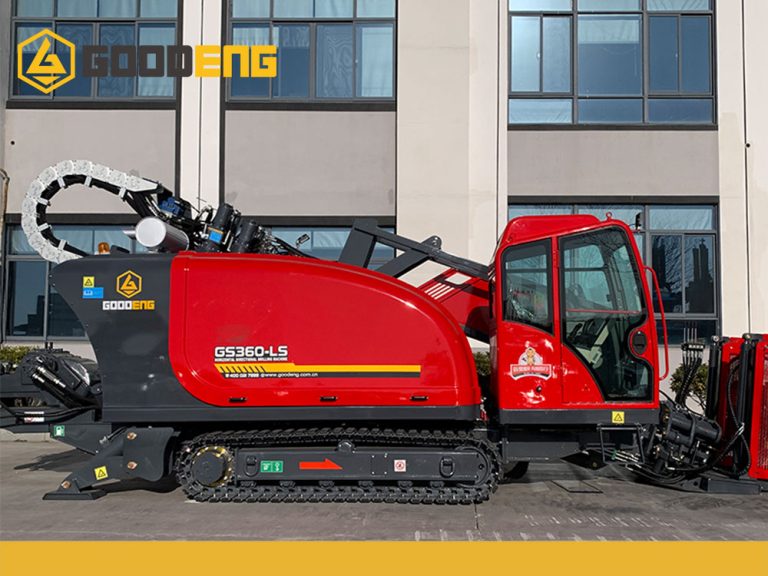

Goodeng G360-LS HORIZONTAL DIRECTIONAL DRILLING MACHINE
The machine is equipped with a CUMMINS engine, which features high efficiency, high power, low fuel consumption, low noise and strong construction capability.
The GS360-LS is equipped with rotatable driving cabin and excellent working view.
Equipped with Ф73×3000mm or Ф76×3000mm or Ф83×3000mm drill rod.
Thrust&pullback and rotation adopt multi-functional handle controlled by pilot valve, which is easy and simple to operate.
The electrical design is reasonable, the failure rate is low and the maintenance is convenient.
Optional device: mud flow control valve, mud flow adjustment valve and Antifreeze water tank.
Main Performance Characteristic
The machine is equipped with a Cummins engine, which features high efficiency, high power, low fuel consumption, low noise and strong construction capability.
- The Rotation is driven by American Eaton large torque motor, with large torque, stable performance, and two gears speed regulation. Thrust&pullback adopts American Eaton motor and three gears speed regulation. The Construction speed is far ahead of other manufactures in the same industry. Driving head provides reinforced power, which expands the scope of drilling construction.
- It is equipped with hydraulic gear pump with military technology. Steel track walks by wire-control, which is convenient for load & unload and transfer.
- Four-bar linkage luffing structure, our patented technology, is used for the main girder to make sure the big entry angle as well as the stable performance of the machine.
- The GS360-LS is equipped with open-air operating table and excellent working view .
- Equipped with Ф73×3000mm or Ф76×3000mm or Ф83×3000mm drill rod.
- Thrust&pullback and rotation adopt multi-functional handle controlled by pilot valve, which is easy and simple to operate.
- The electrical design is reasonable, the failure rate is low and the maintenance is convenient.
- Optional device: mud flow control valve, mud flow adjustment valve and Antifreeze water tank.
