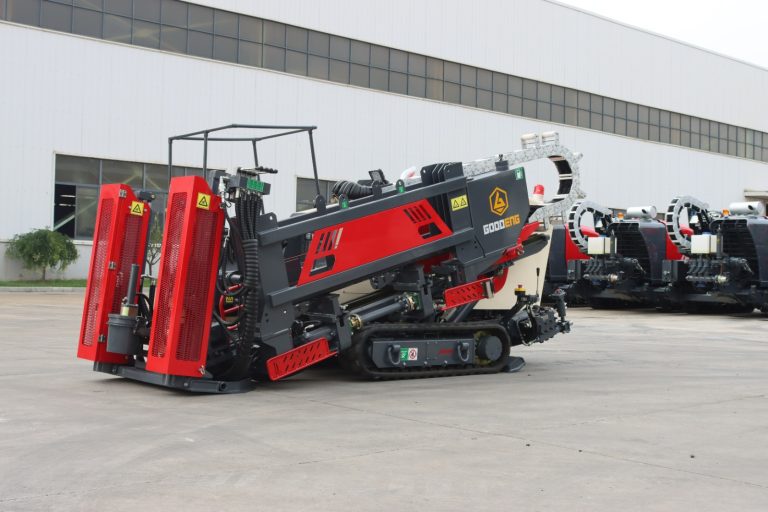

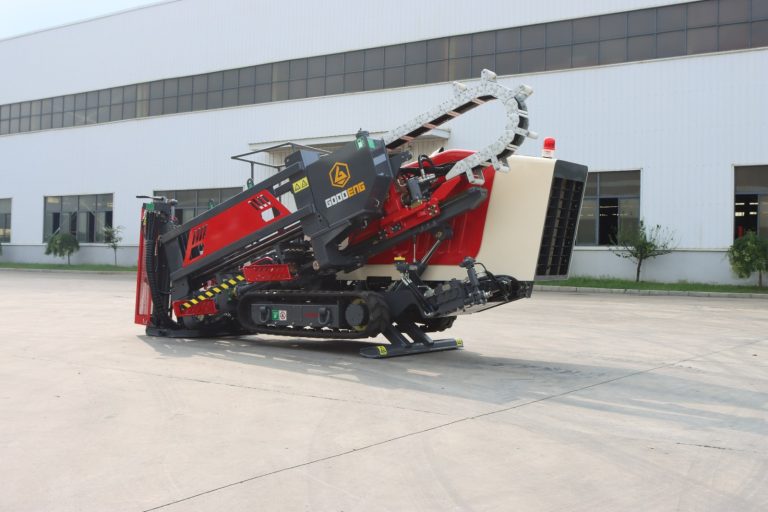

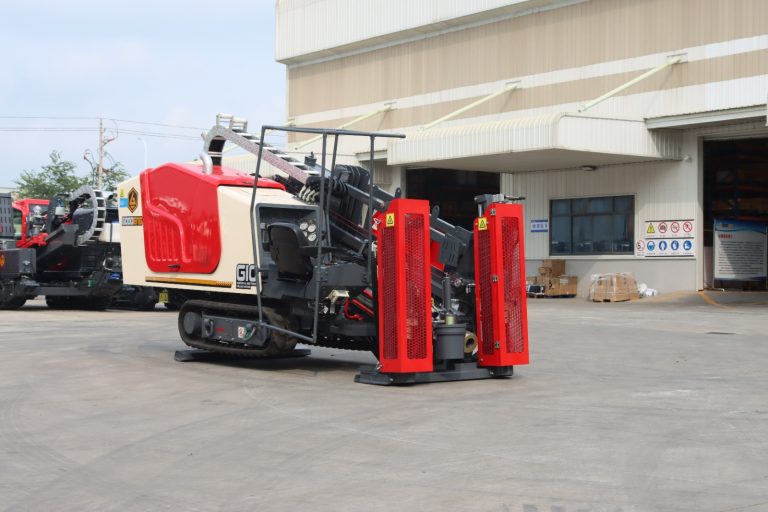

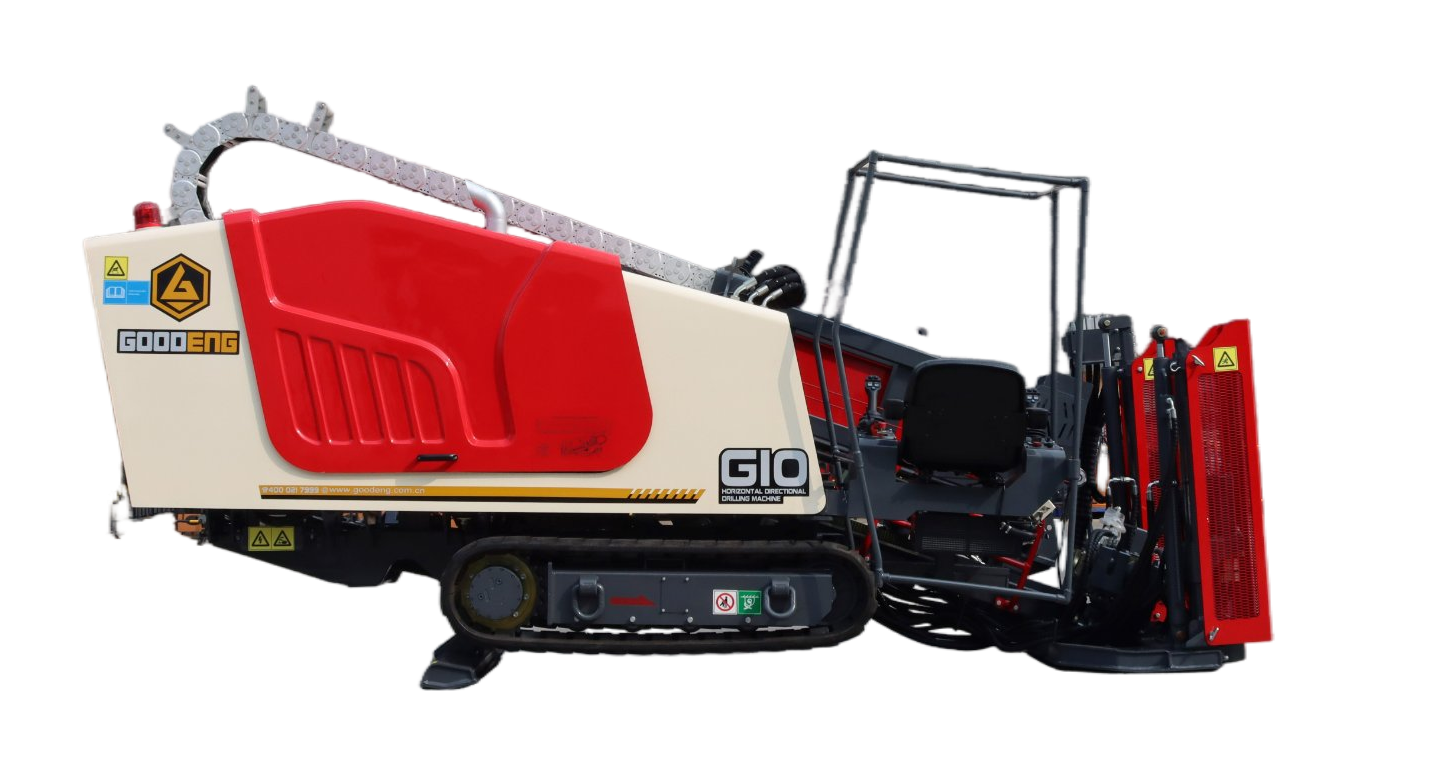

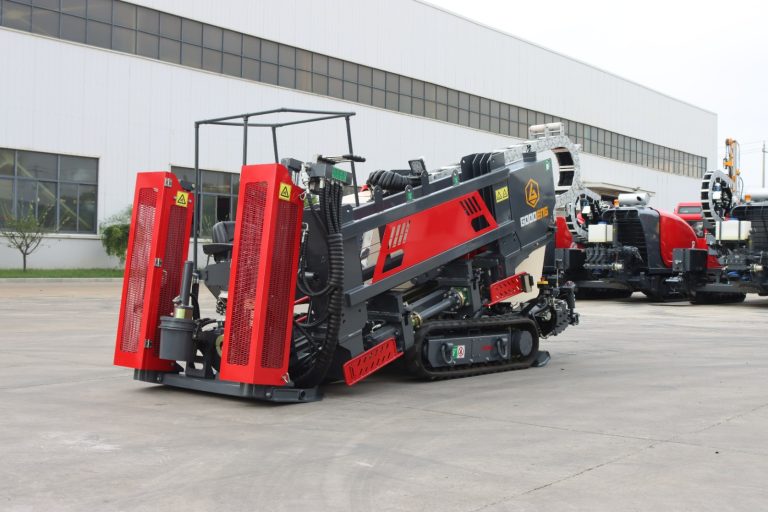

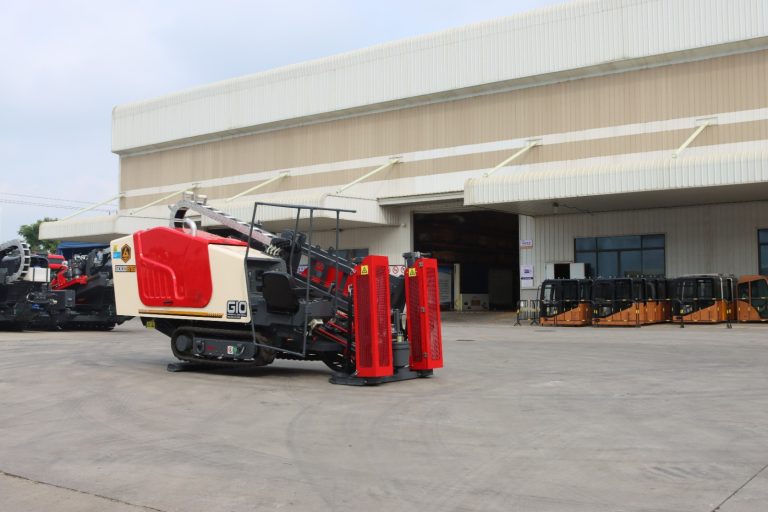

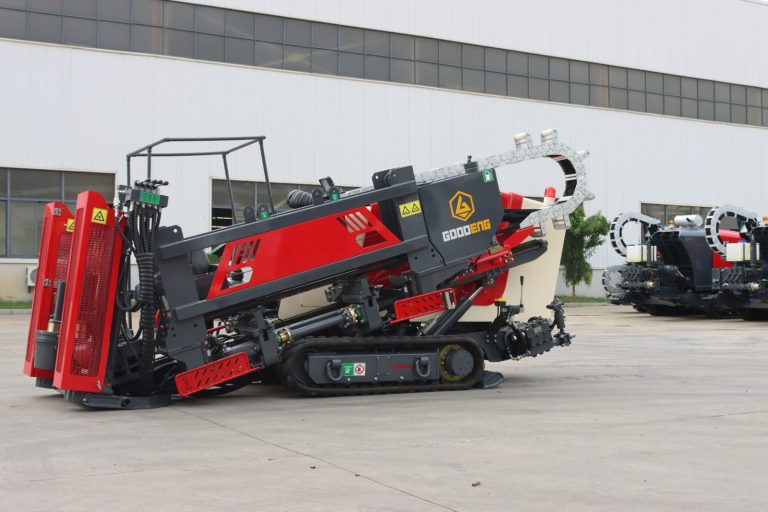

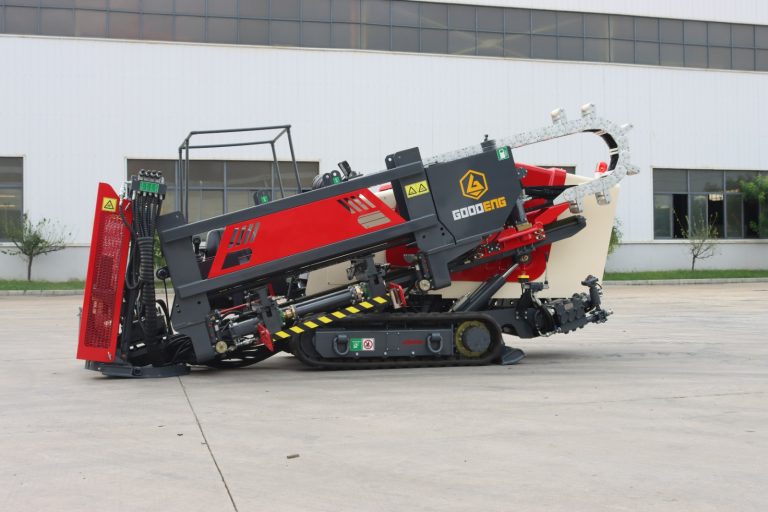

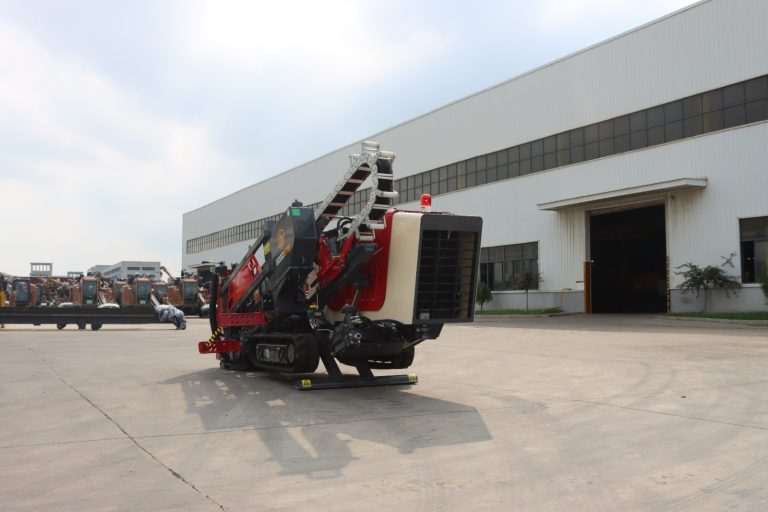

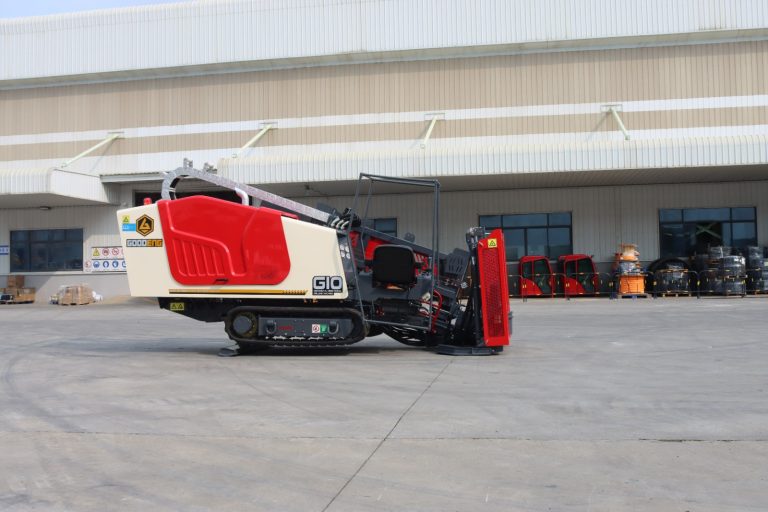

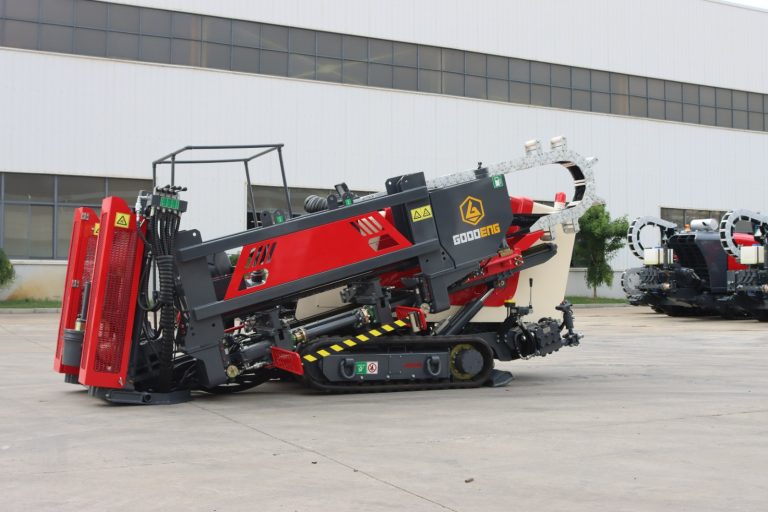

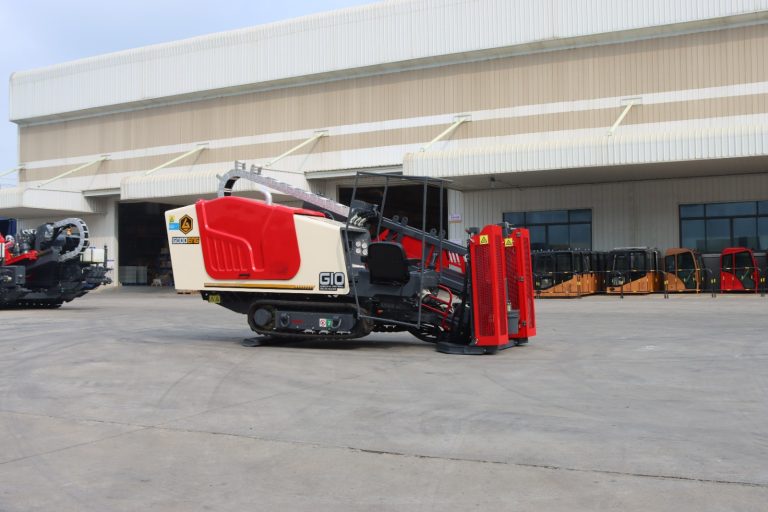

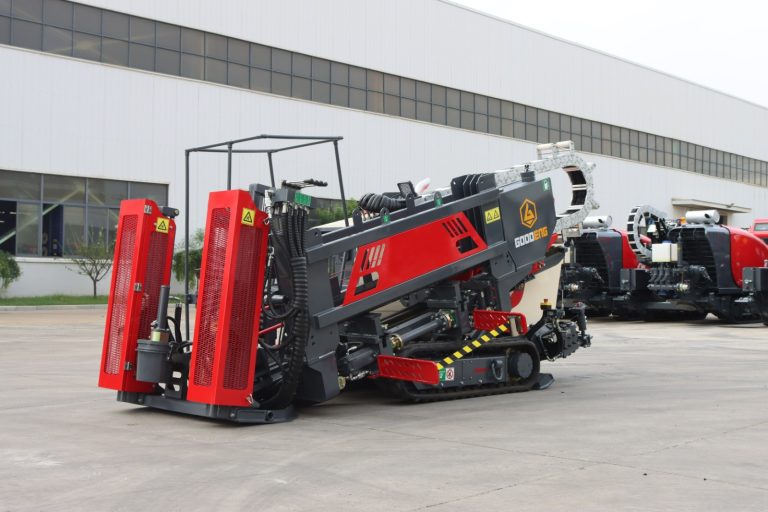

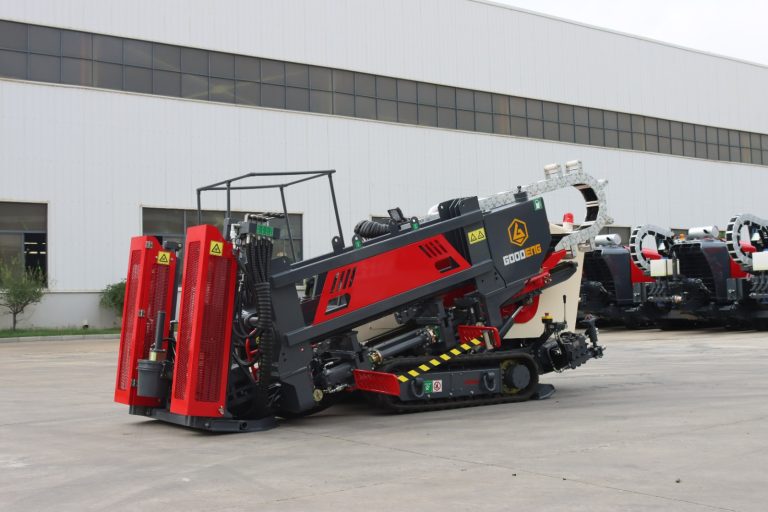

GOODENG G10 HORIZONTAL DIRECTIONAL DRILLING MACHINE
CHARACTERISTICS
DESCRIPTION
MAIN TECHNICAL PARAMETERS
| Weight | 3700 kg 8157 lb | Dimension(L×W×H) | 4220×1460×1590 mm 166.14*57.48*62.59 in | ||||
| Max. Thrust & Pullback Force | Max. Thrust & Pullback Speed | 61 m/min 200 ft/min | |||||
| Max. Torque | 2250 N·m 1659 lbf·ft | Max. Rotation Speed | 215 r/min | ||||
| Engine Power | 43 kW 57 HP | Max. Mud flow | 75 L/min 16.5 GPM | ||||
| Walking Speed | 0-4.5 km/h 0-2.79 mile/h | Max. Mud Pressure | 6 MPa 870 psi | ||||
| Entry Angle | 20° | Max.Climbing Gradient | 17° | ||||
| Drill Rod Size | Ф42×1825 mm 1.65*71.85 in | Drill Rod Box Capacity | 48 pcs | ||||
| Suggest Reaming Dia. | ≤ Φ400 mm ≤ Φ15.74 in | Suggest Crossing Length | ≤ 100 m ≤ 328 ft | ||||

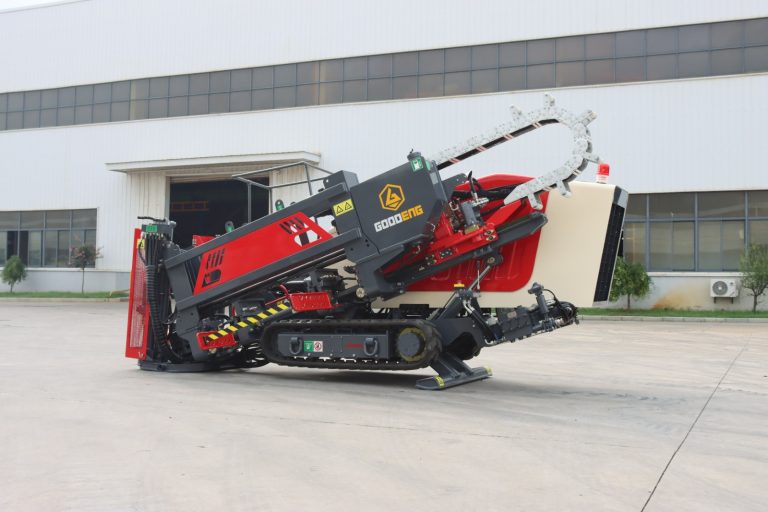

Goodeng G10 Professional Small HDD Machine Hydraulic Directional Drilling Rig for Pipeline Construction

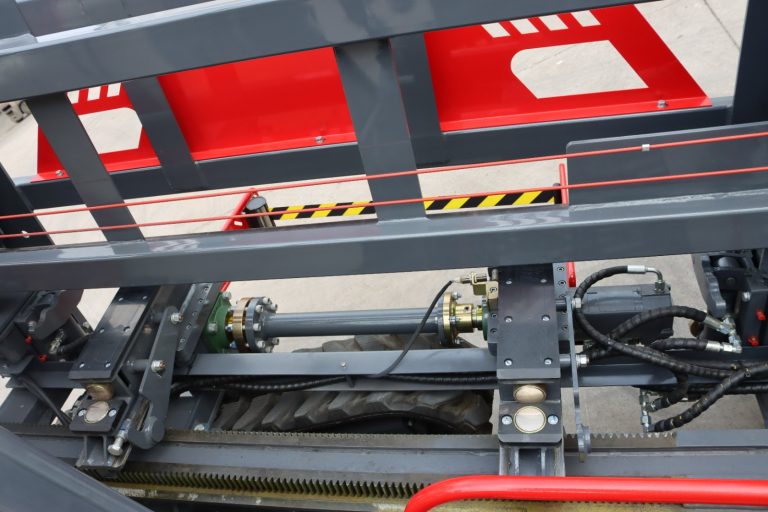

- The power head rotation is driven by the American high-torque Eaton motor, which is stable in performance and achieves stepless variable speed. The thrust & pullback motor also adopts the American Eaton motor to achieve stepless variable speed, and the machine’s work speed is far ahead in trenchless industry.

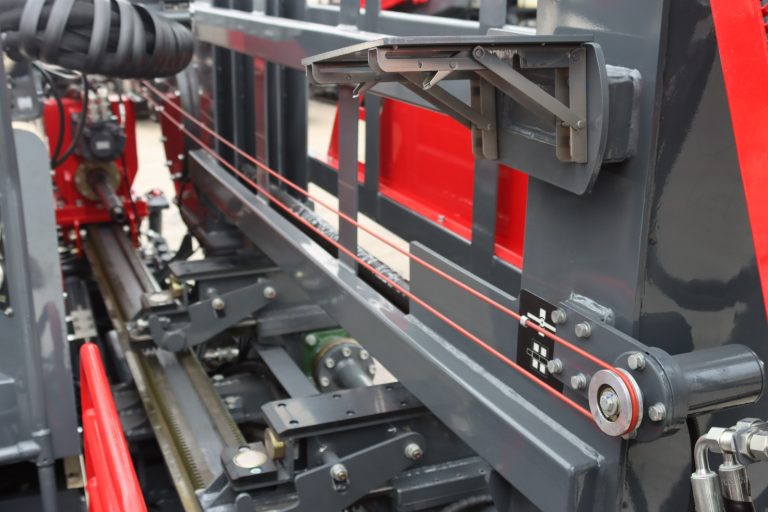

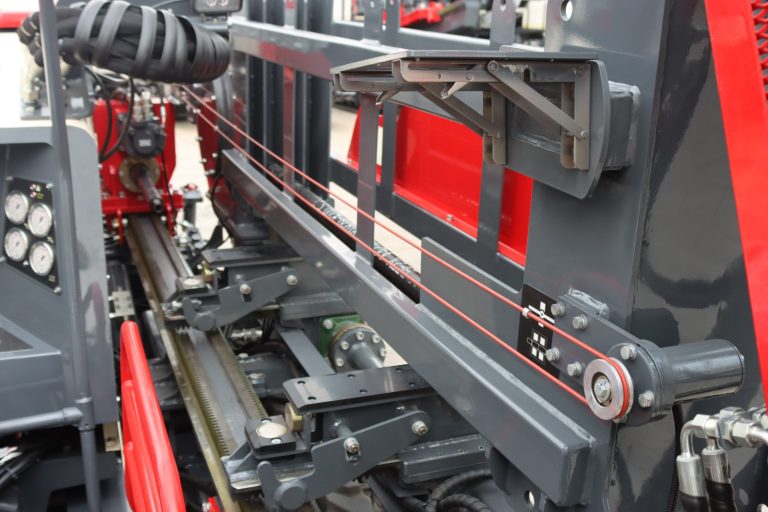

- The Ф42×1825mm drill rod allows the machine to be adapted to smaller construction space. The drill rod box capacity is 48pcs.

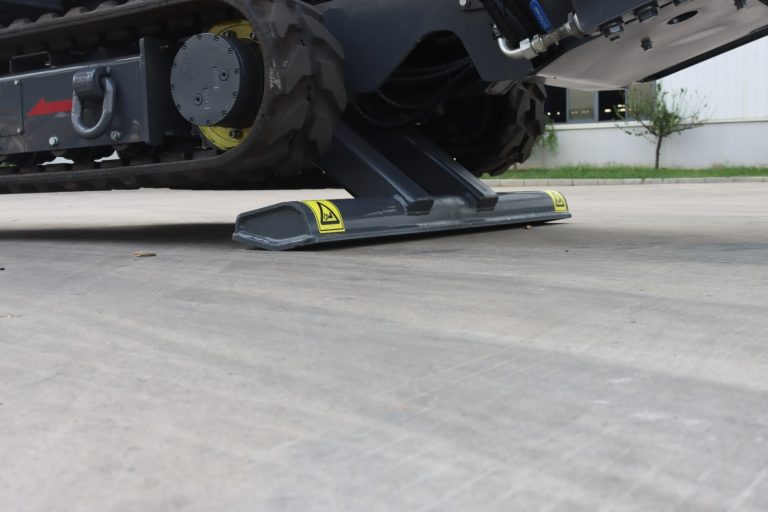

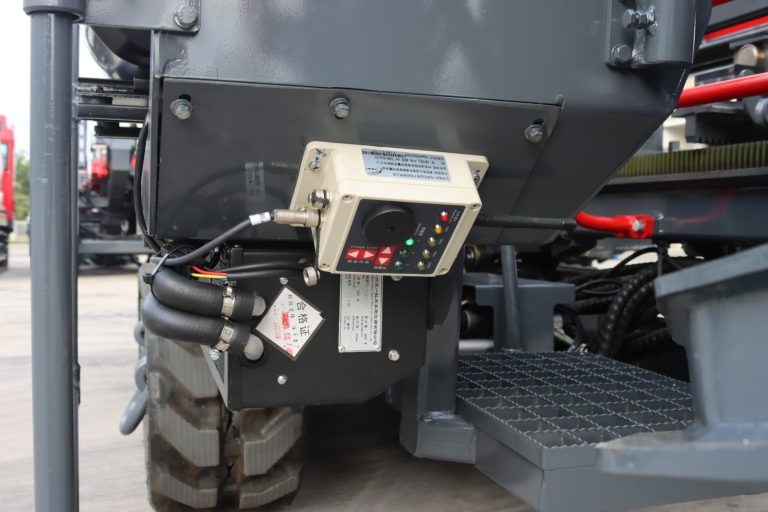

- Optional accessories—including an automatic grease injector, rod-loading box, and hydraulic anchor—expand the rig’s versatility and functionality. Manufactured by Shanghai Goodeng International Co., Ltd., a trusted name in high-quality trenchless technology, the G10 represents a advanced drilling solution tailored for a broad spectrum of infrastructure projects.
