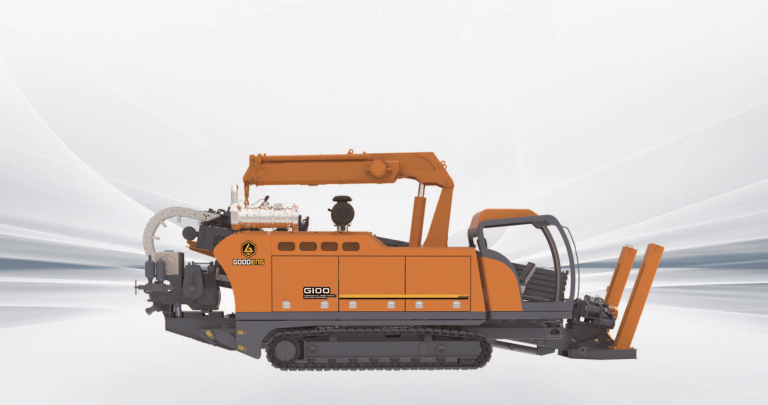

GOODENG G100 HORIZONTAL DIRECTIONAL DRILLING MACHINE
CHARACTERISTICS
DESCRIPTION
MAIN TECHNICAL PARAMETERS
| Weight | 21000 kg 46297 lb | Dimension(L×W×H) | 9000×2520×2630 mm 354*99*103 in | ||||
| Max. Thrust & Pullback Force | 453 kN 101838 lbf | Max. Thrust & Pullback Speed | 65 m/min 213.25 ft/min | ||||
| Max. Torque | 19000 N·m 14013 lbf·ft | Max. Rotation Speed | 192 r/min | ||||
| Engine Power | 194 kW 260 HP | Max. Mud flow | 800 L/min 175 GPM | ||||
| Walking Speed | 0-5 km/h 0-3.10 mile/h | Max. Mud Pressure | 8 MPa 1160 psi | ||||
| Entry Angle | 21° | Max.Climbing Gradient | 17° | ||||
| Drill Rod Size | Ф89×4600 mm 3.50*181.1 in | Crane | 4.5 t | ||||
| Suggest Reaming Dia. | ≤ Φ1200 mm ≤ Φ47.24 in | Suggest Crossing Length | ≤ 800 m ≤ 2624 ft | ||||
Goodeng G100 Advanced Utility Line Drill Rig Horizontal Drilling Equipment for Power Line Projects
- Thrust&pullback and rotation adopt manual handle, which makes control simple and quick.
- Europe-American style surface, streamline shape, and elegant appearance, it can be opened overall for flexible operation and daily maintenance.
- Small size and lightness is better for construction in downtown, transferring and working in different kinds of jobsite.
- It is equipped with Vermeer type drill rod Ф89×4600mm, with high quality, high reliability and superior performance.
- Main assembly parts are from international first-class hydraulic components manufacturer, which can greatly improve the performance of products reliability.
- Optional accessories—including an automatic grease injector, rod-loading box, and hydraulic anchor—expand the rig’s versatility and functionality.
