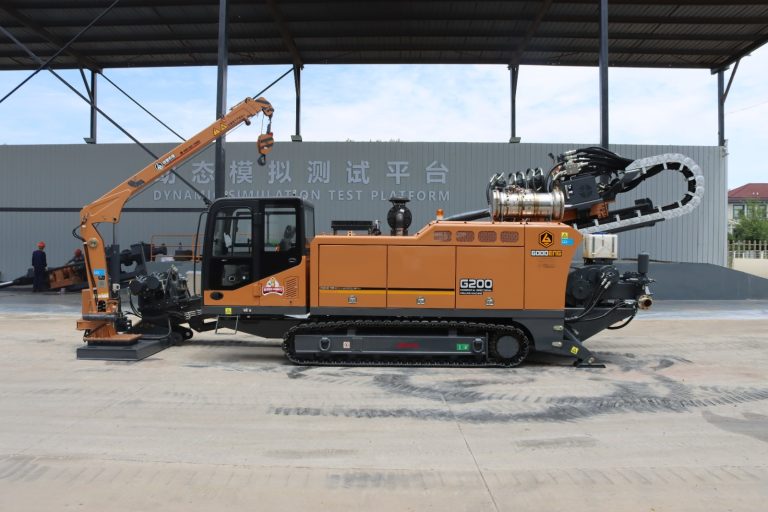

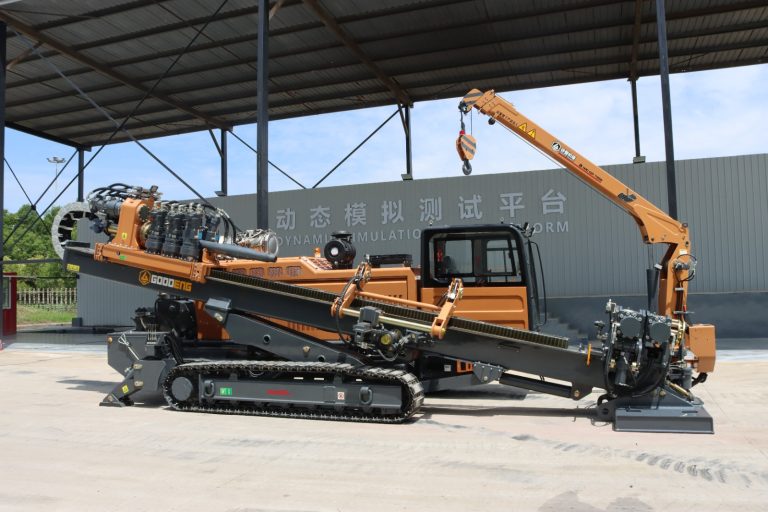

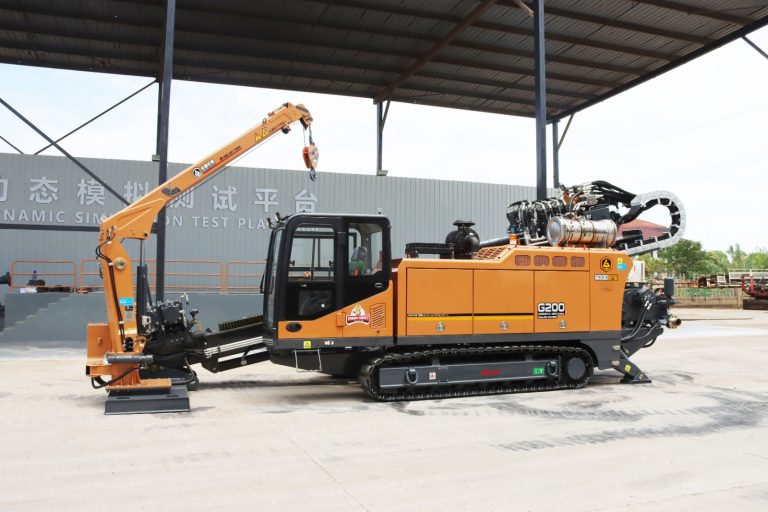

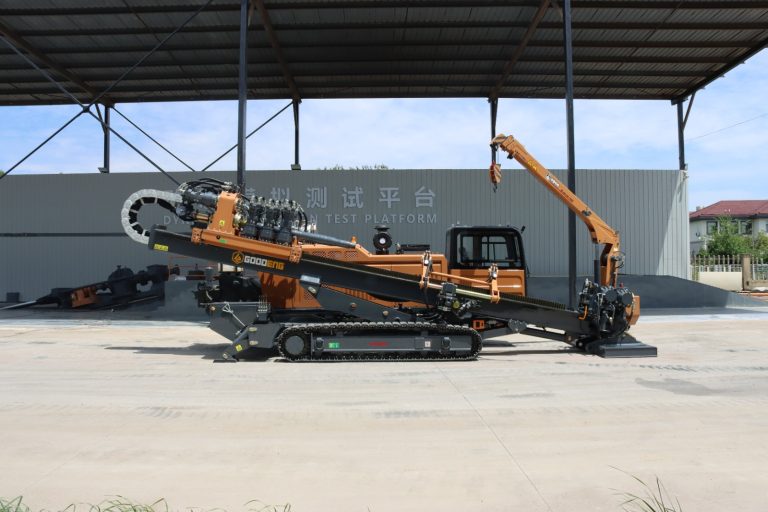

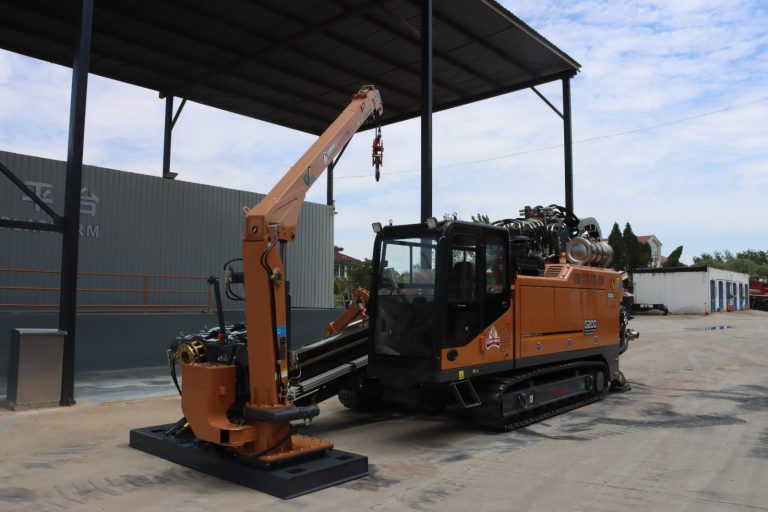

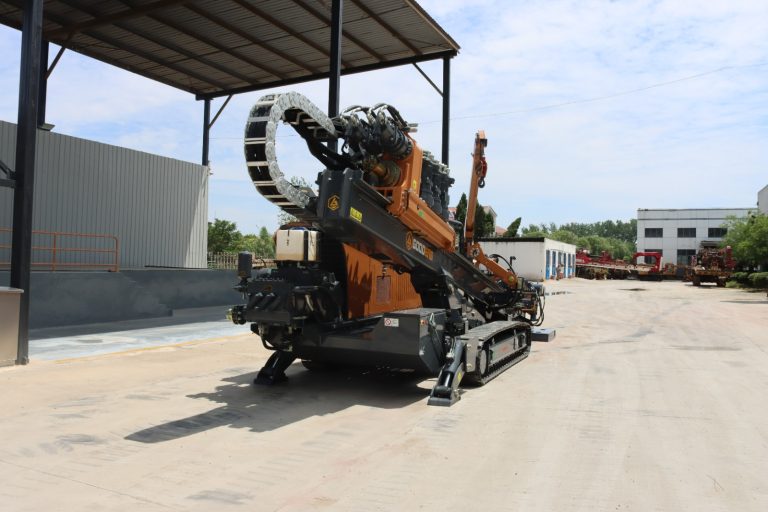

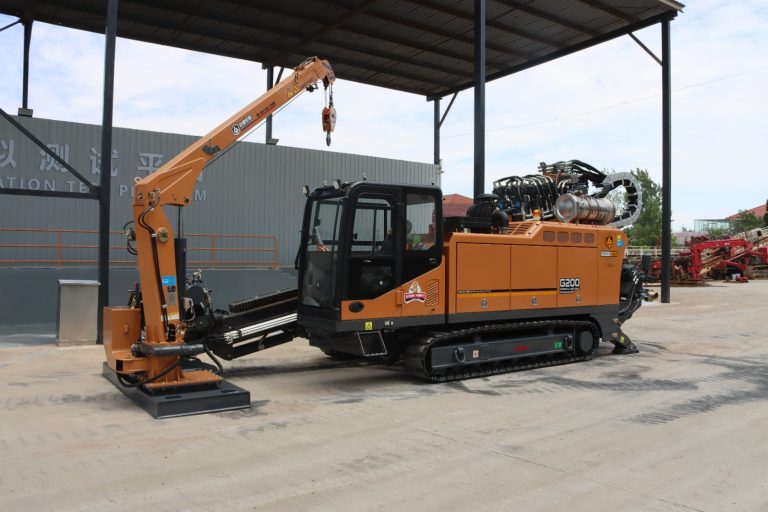

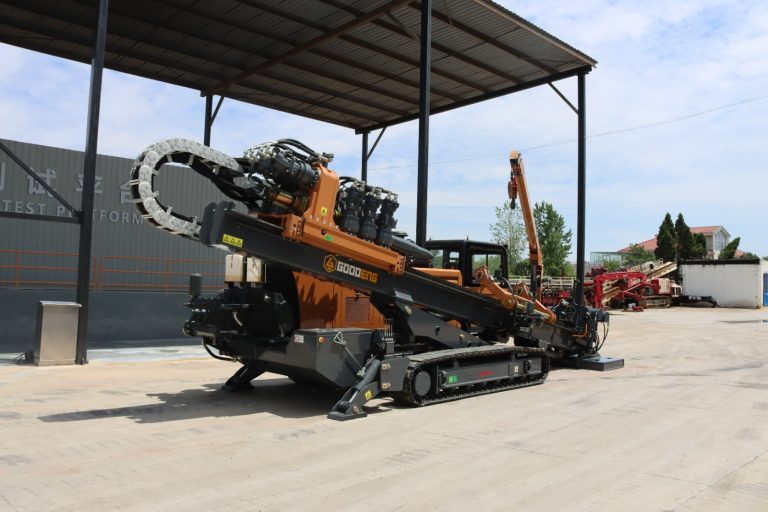

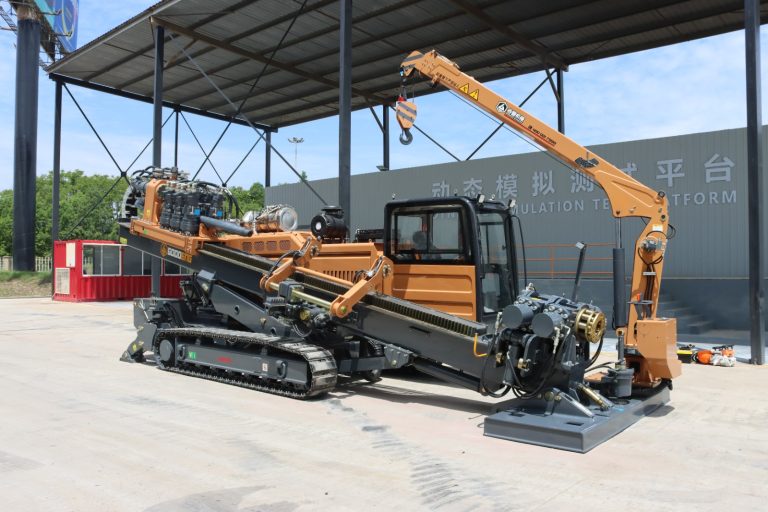

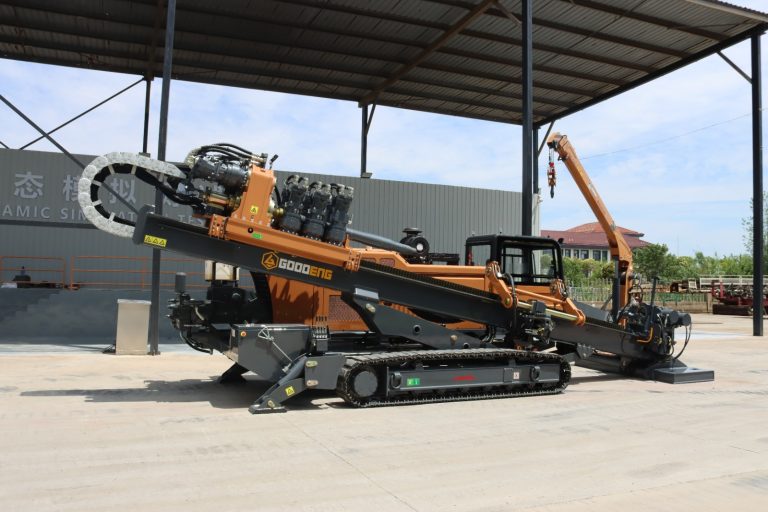

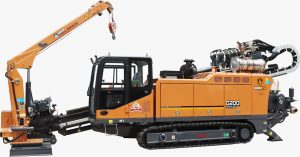

GOODENG G200 HORIZONTAL DIRECTIONAL DRILLING MACHINE
CHARACTERISTICS
DESCRIPTION
MAIN TECHNICAL PARAMETERS
| Weight | 17000 kg 37478 lb | Dimension(L×W×H) | 10670×2650×2440 mm 420.07*104.33*96.06 in | ||||
| Max. Thrust & Pullback Force | 830/1250 kN 186591/281011 lbf | Max. Thrust & Pullback Speed | 54 m/min 177 ft/min | ||||
| Max. Torque | 35300 N·m 26035 lbf·ft | Max. Rotation Speed | 102 r/min | ||||
| Engine Power | 221 kW 296 HP | Max. Mud flow | 800 L/min 175 GPM | ||||
| Walking Speed | 0-5 km/h 0-3.10 mile/h | Max. Mud Pressure | 8 MPa 1160 psi | ||||
| Entry Angle | 19° | Max.Climbing Gradient | 20° | ||||

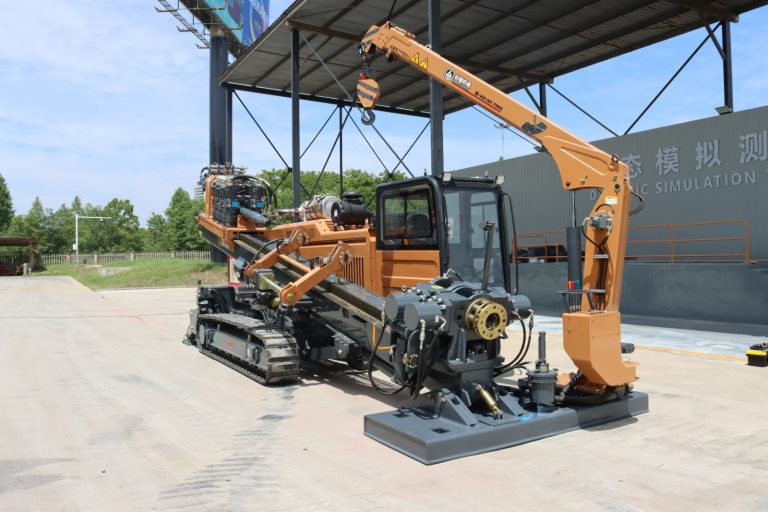

| Drill Rod Size | Ф102×4500 mm 4.01*177.16 in | Crane | 2 t | ||||
| Suggest Reaming Dia. | ≤ Φ1400 mm ≤ Φ55.11 in | Suggest Crossing Length | ≤ 900 m ≤ 2952ft | ||||
Goodeng G200 Advanced Utility Line Drill Rig Horizontal Drilling Equipment for Power Line Projects
- Thrust&pullback and rotation adopt manual handle, which makes control simple and quick.
- Europe-American style surface, streamline shape, and elegant appearance, it can be opened overall for flexible operation and daily maintenance.
- Small size and lightness is better for construction in downtown, transferring and working in different kinds of jobsite.
- It is equipped with Vermeer type drill rod Φ102×4500mm, with high quality, high reliability and superior performance.
- Main assembly parts are from international first-class hydraulic components manufacturer, which can greatly improve the performance of products reliability.

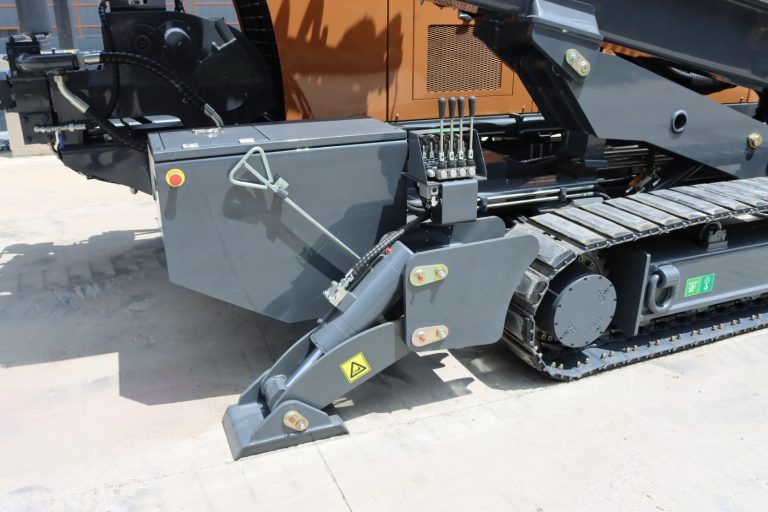

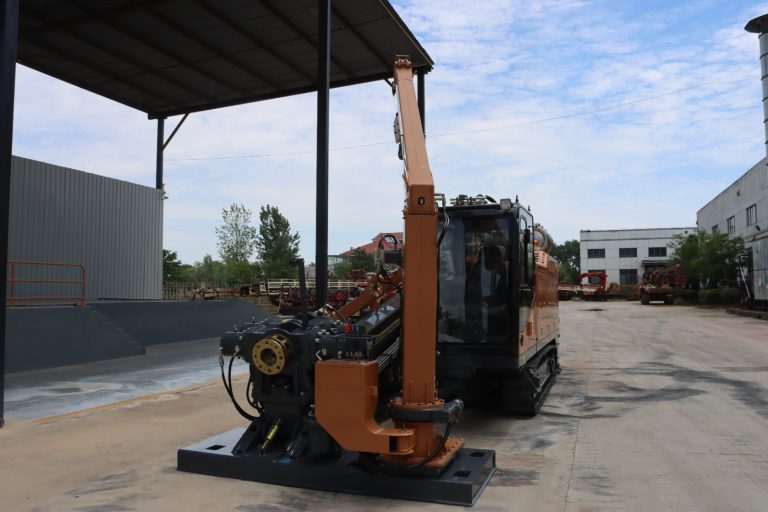

- Optional accessories—including an automatic grease injector, rod-loading box, and hydraulic anchor—expand the rig’s versatility and functionality.
