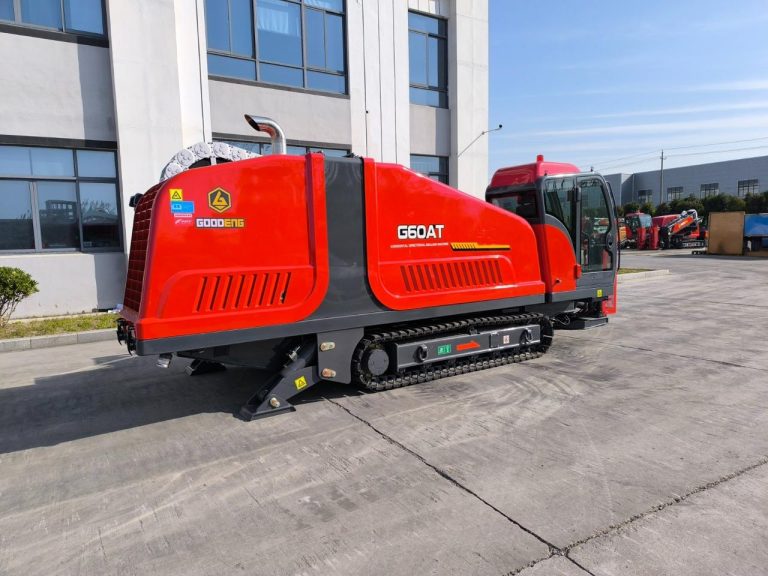

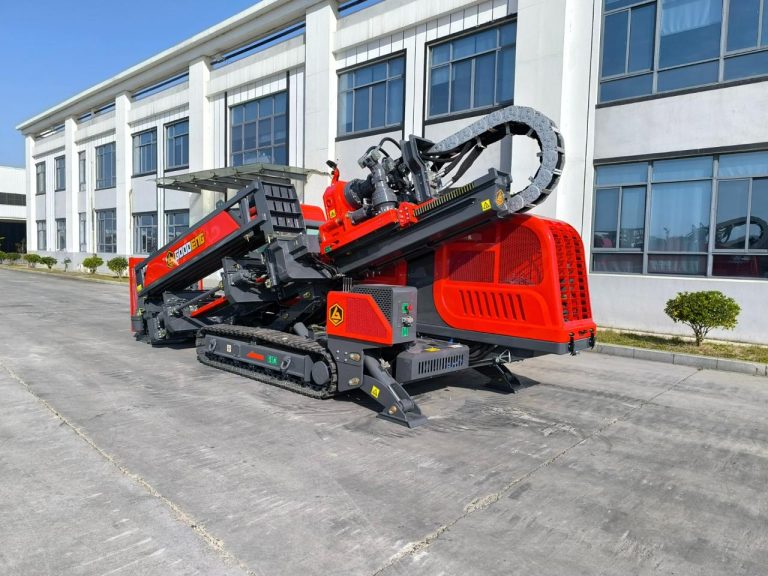

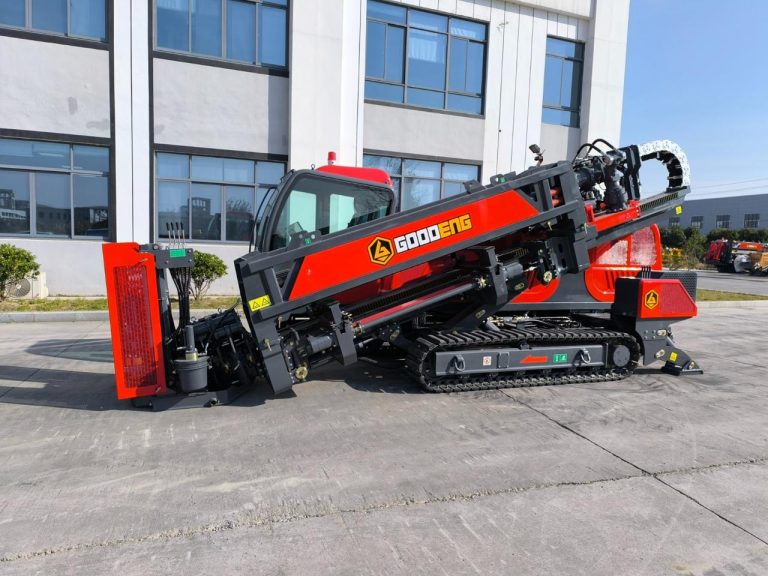

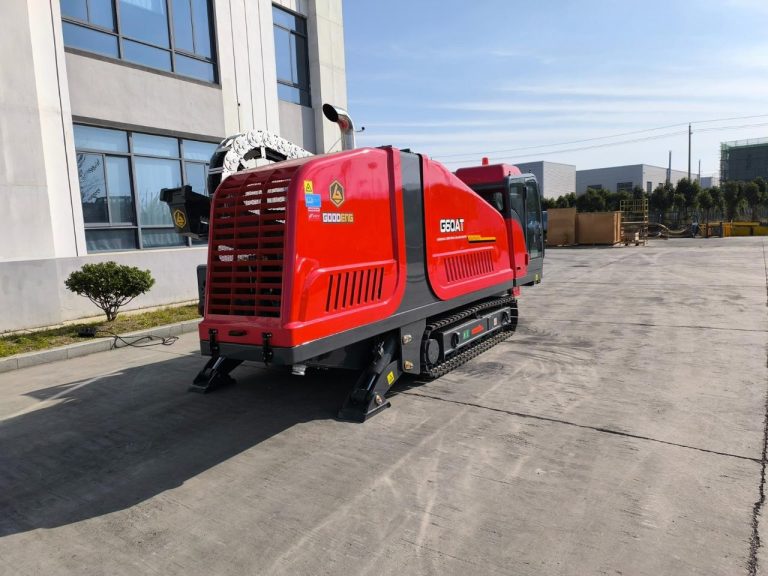

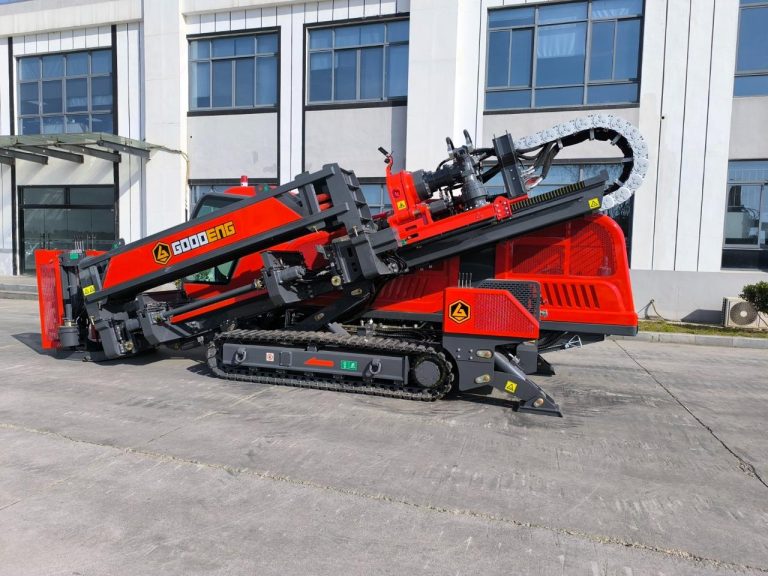

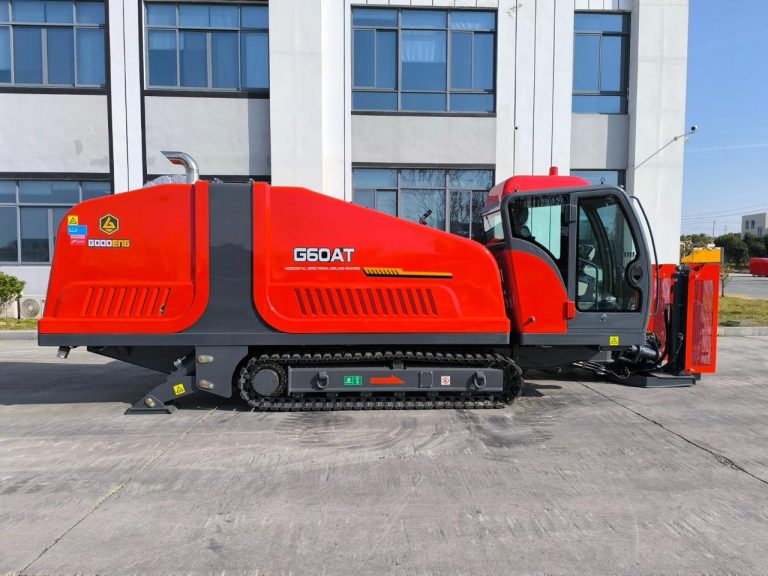

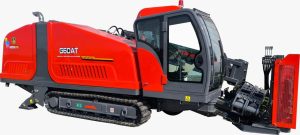

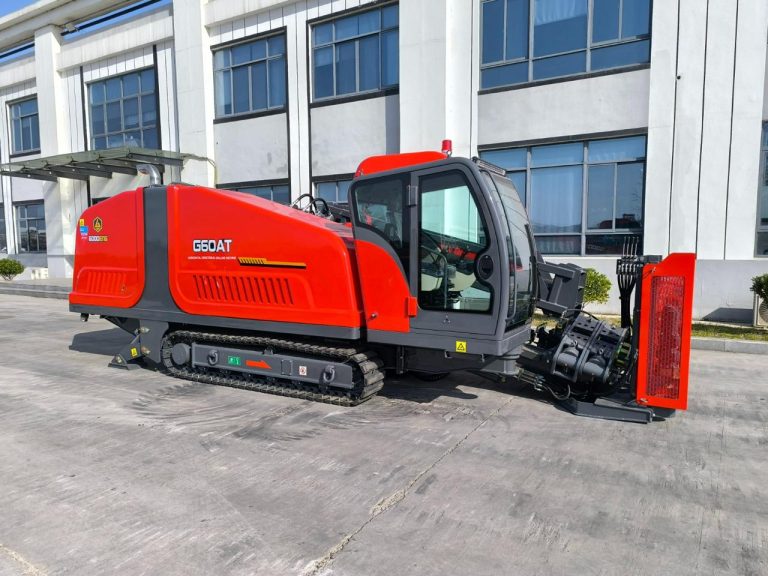

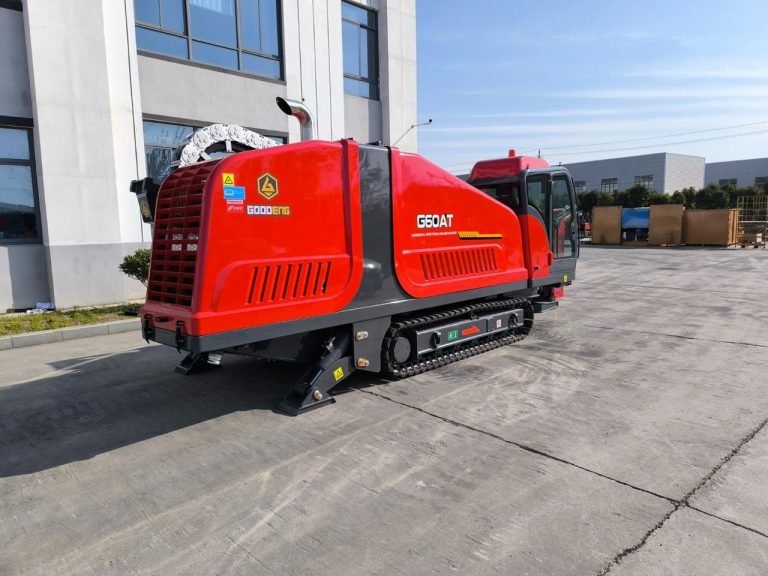

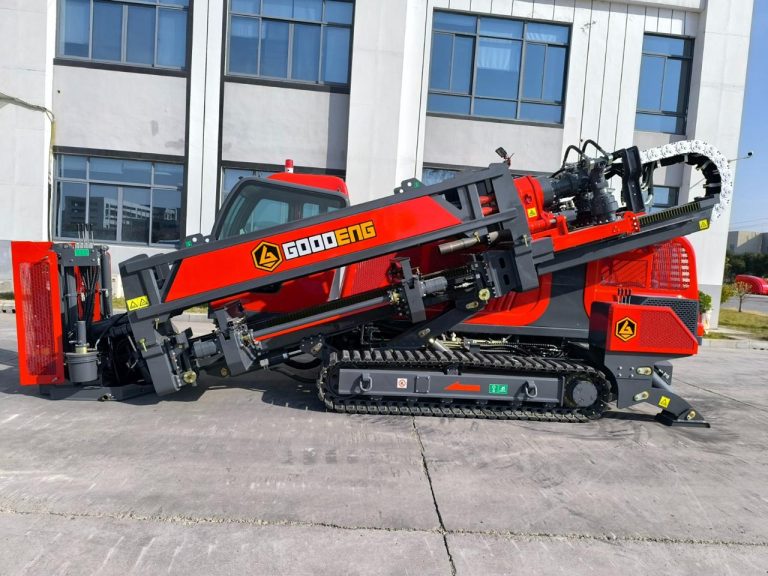

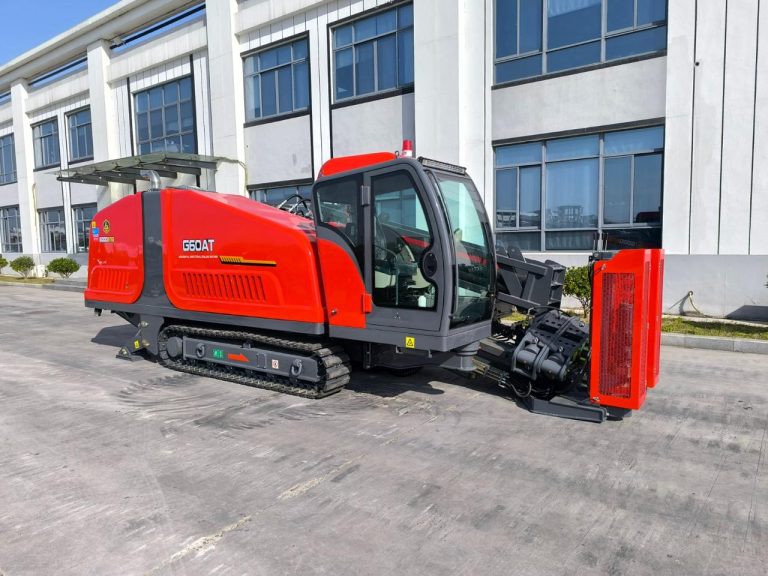

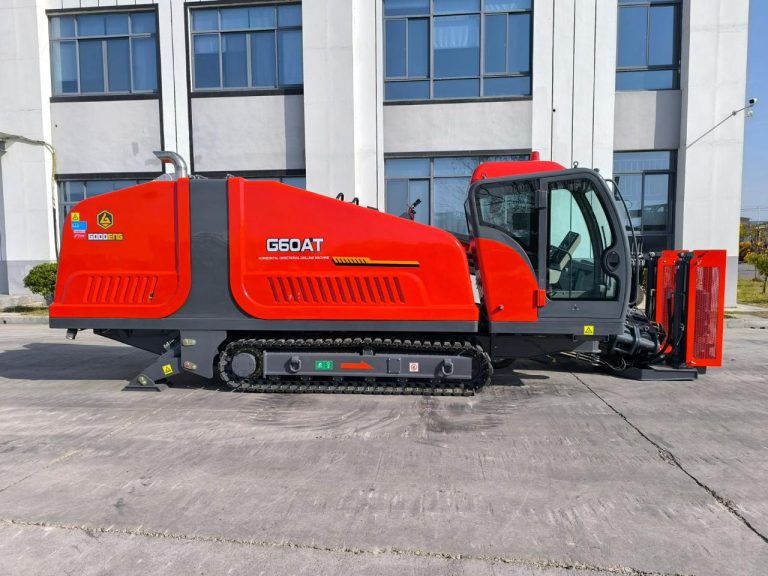

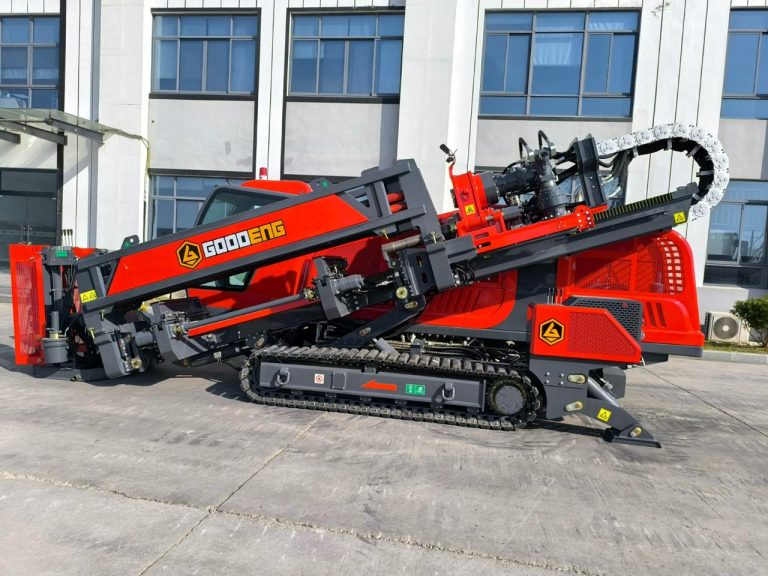

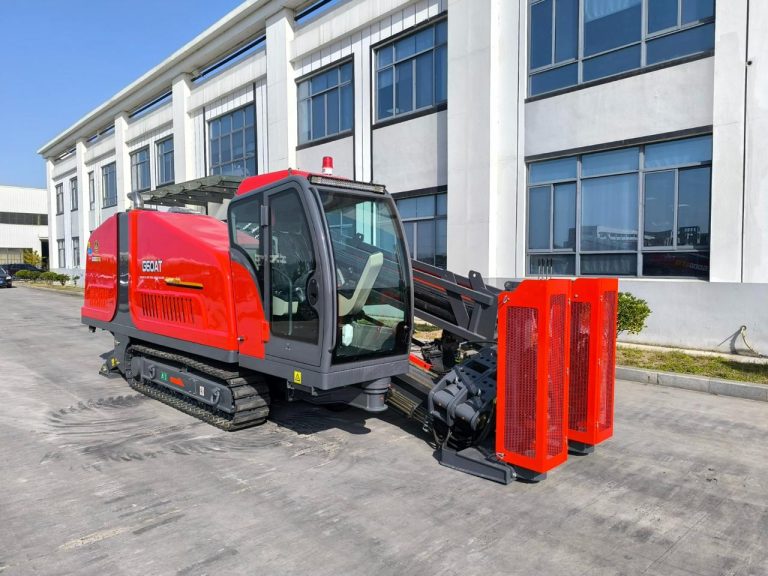

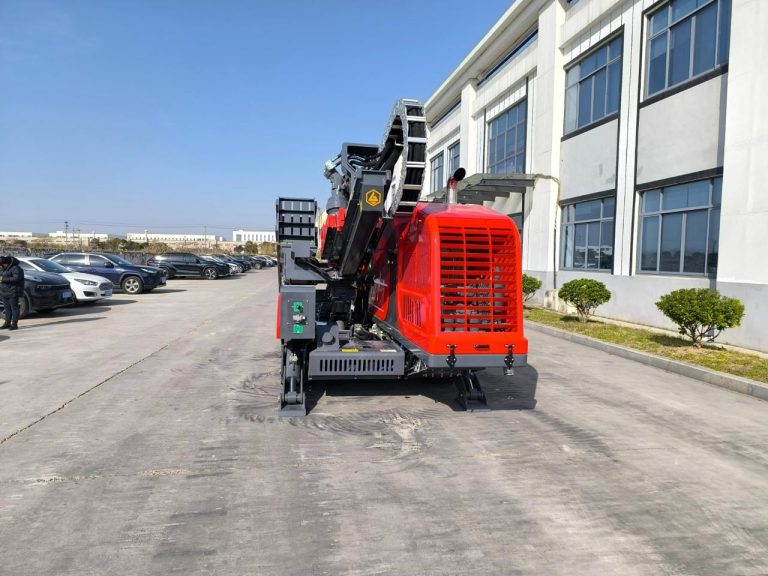

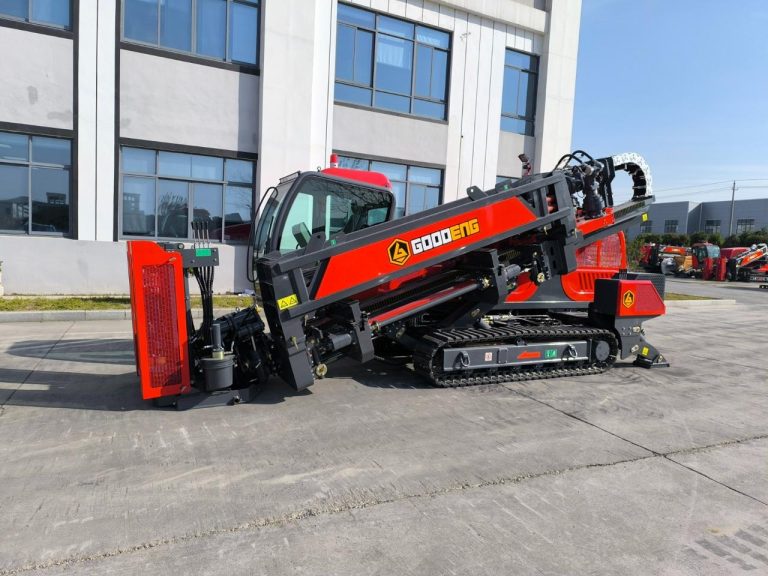

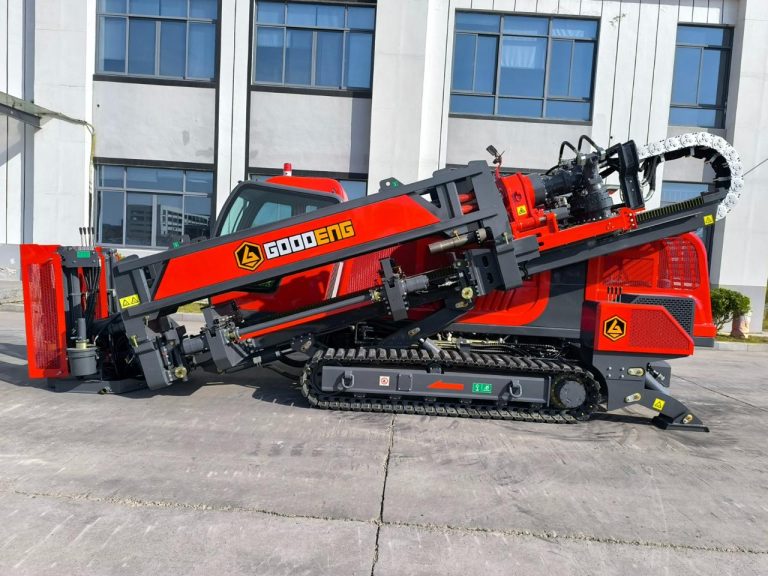

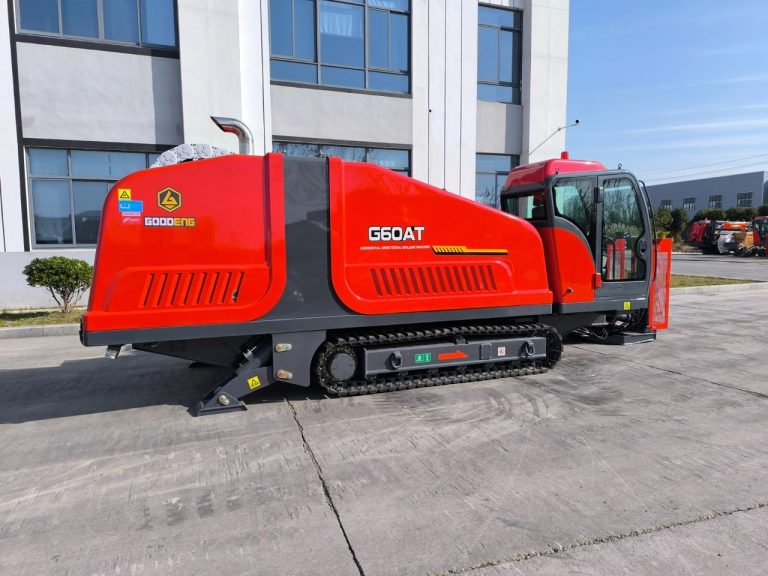

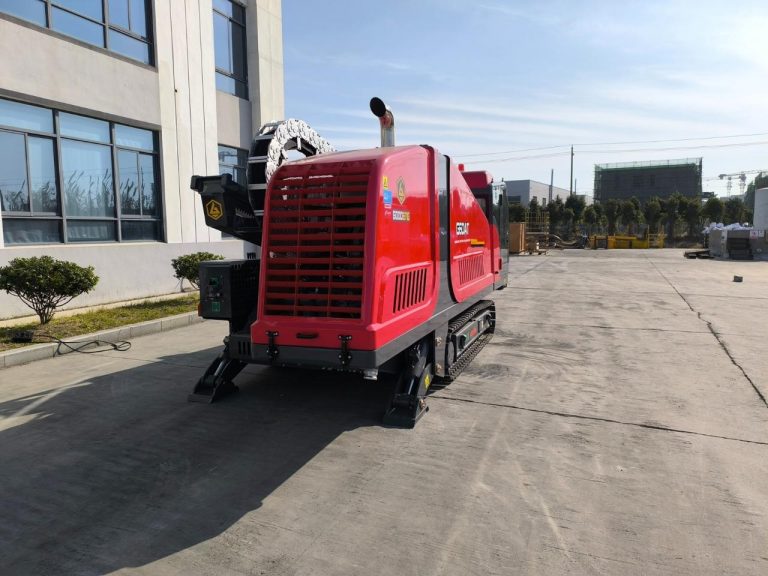

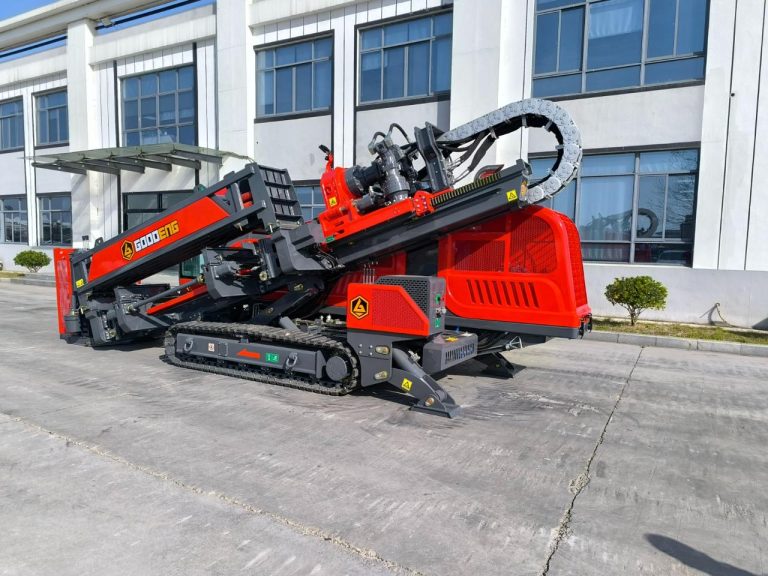

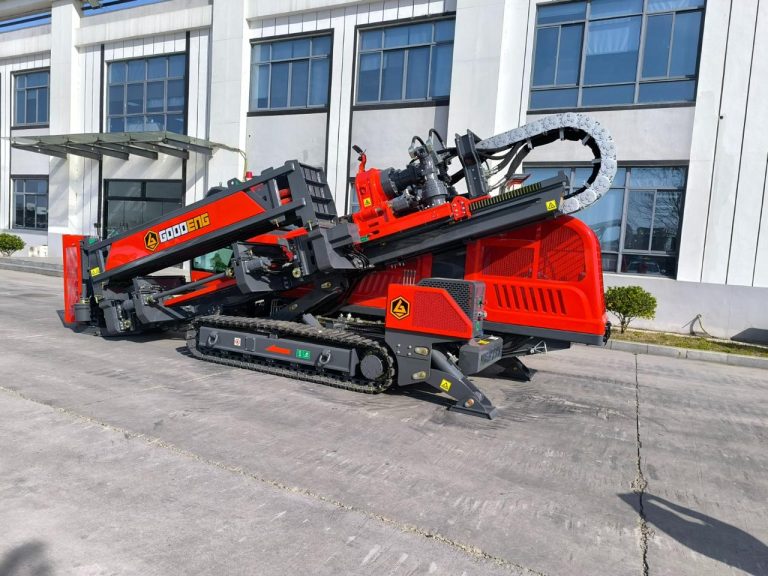

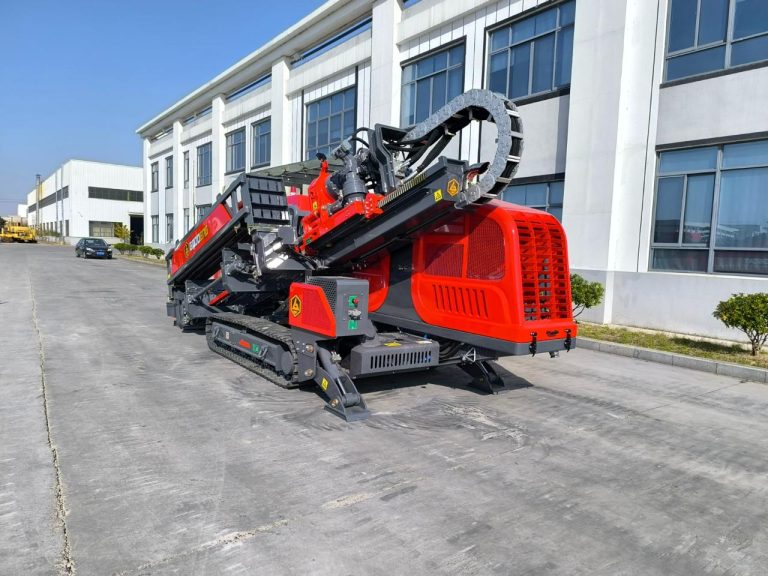

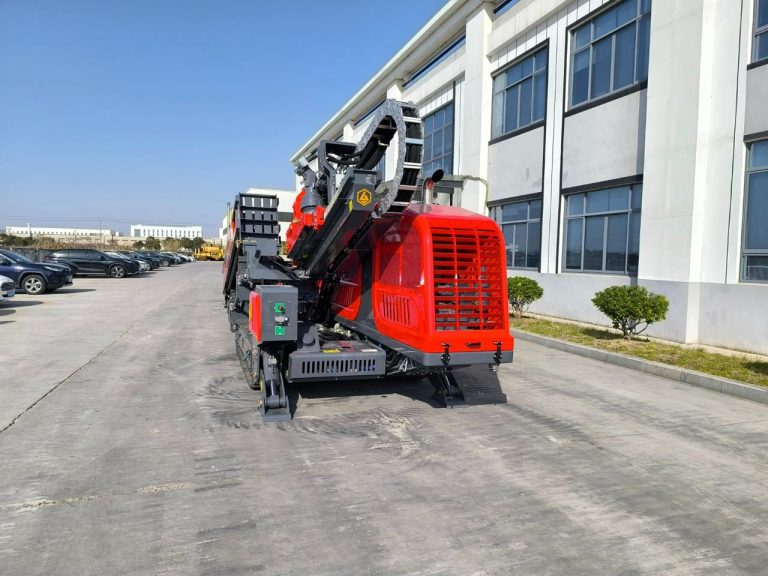

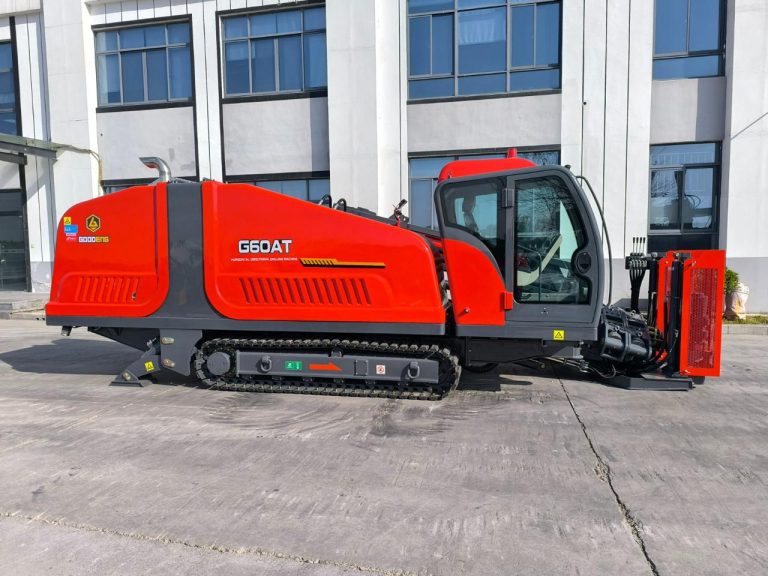

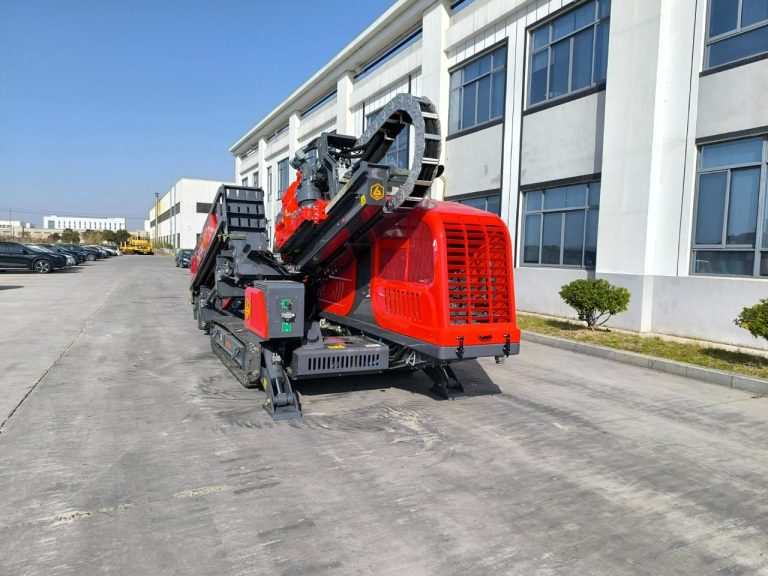

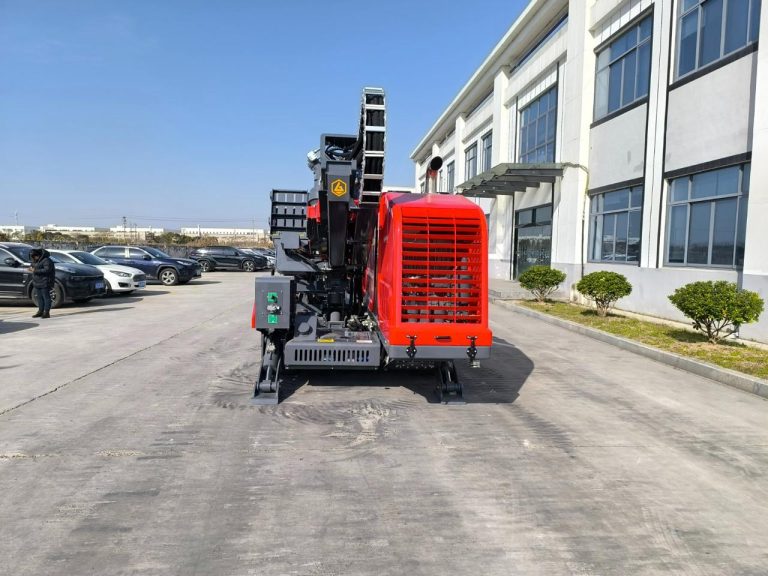

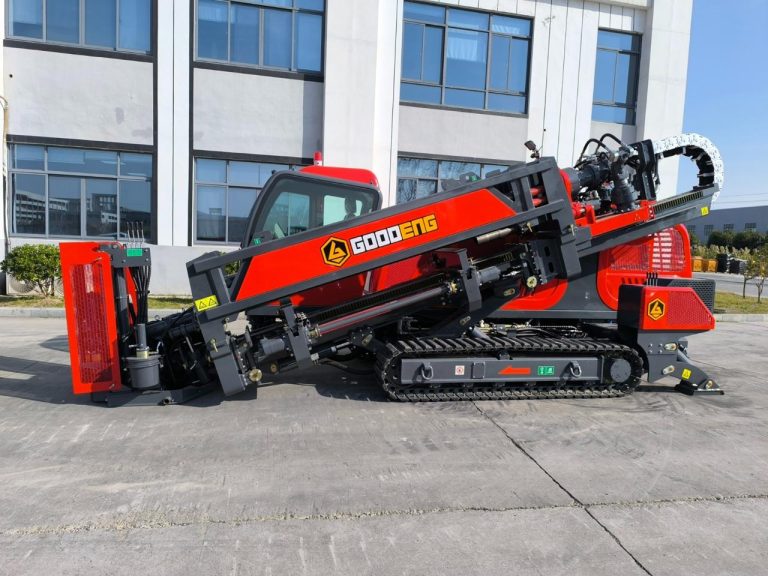

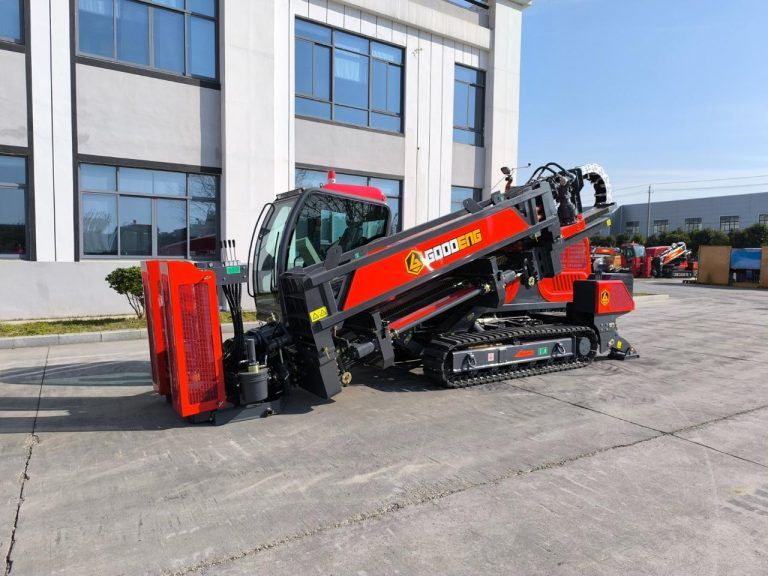

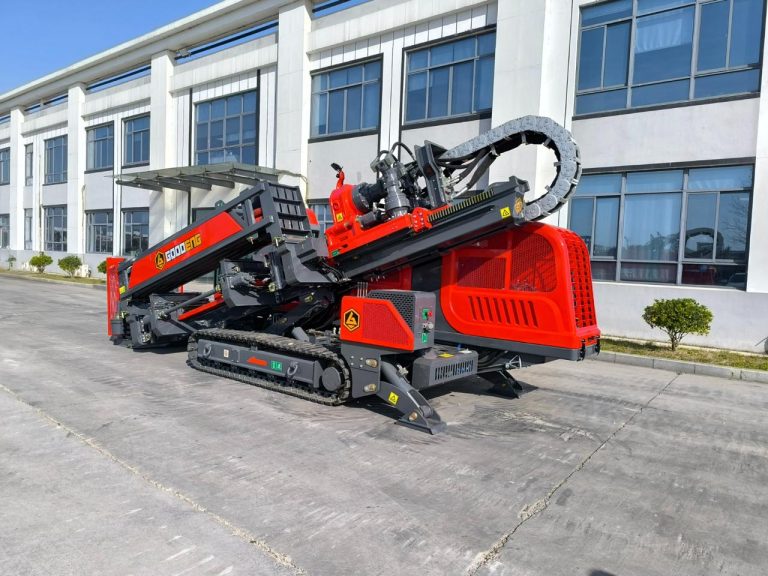

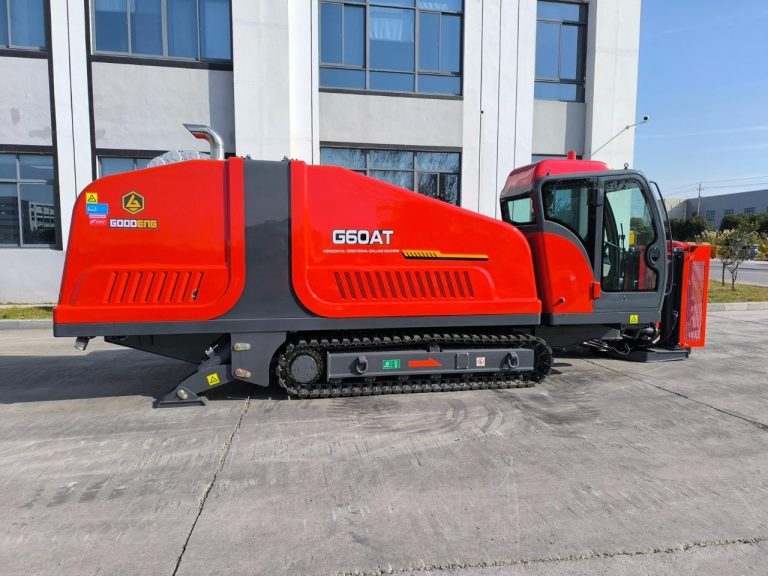

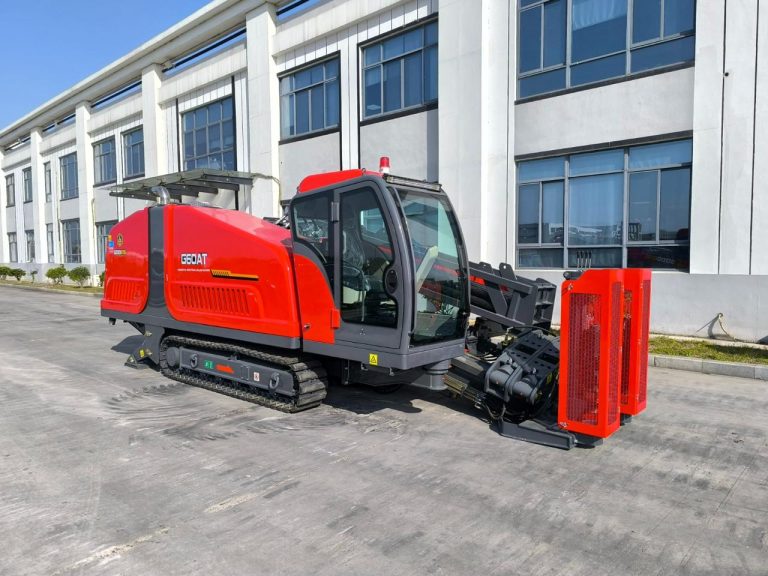

GOODENG G60AT ALL TERRAIN HORIZONTAL DIRECTIONAL DRILLING MACHINE
CHARACTERISTICS
DESCRIPTION
MAIN TECHNICAL PARAMETERS
| Weight | 11500 kg 25353 lb | Dimension(L×W×H) | 7200×2270×2400 mm 283.46*89.37*94.48 in | ||||
| Max. Thrust & Pullback Force | 280 kN 62946 lbf | Max. Thrust & Pullback Speed | 65 m/min 213 ft/min | ||||
| Max. Torque | 12500 N·m 9219 lbf·ft | Max. Rotation Speed | 238 r/min | ||||
| Engine Power | 151 kW 202 HP | Max. Mud flow | 560 L/min 125 GPM | ||||
| Walking Speed | 0-3 km/h 0-1.86 mile/h | Max. Mud Pressure | 8 MPa 1160 psi | ||||
| Entry Angle | 21° | Max.Climbing Gradient | 17° | ||||
| Drill Rod Size | Ф73×3000 mm 2.87*118 in | Drill Rod Box Capacity | 36 pcs(4×9) | ||||
| Suggest Reaming Dia. | ≤ Φ1000 mm ≤ Φ39.37 in | Suggest Crossing Length | ≤ 400 m ≤ 1312 ft | ||||
Goodeng G60-AT All-Terrain Horizontal Directional Drilling Unit Crawler-Mounted HDD Rig for Rough Field Operations
- Thrust&pullback and rotation adopt manual handle, which makes control simple and quick.
- Europe-American style surface, streamline shape, and elegant appearance, it can be opened overall for flexible operation and daily maintenance.
- Small size and lightness is better for construction in downtown, transferring and working in different kinds of jobsite.
- It is equipped with Vermeer type drill rod Φ89×4600mm, with high quality, high reliability and superior performance.
- Main assembly parts are from international first-class hydraulic components manufacturer, which can greatly improve the performance of products reliability.
- Optional accessories—including an automatic grease injector, rod-loading box, and hydraulic anchor—expand the rig’s versatility and functionality.
