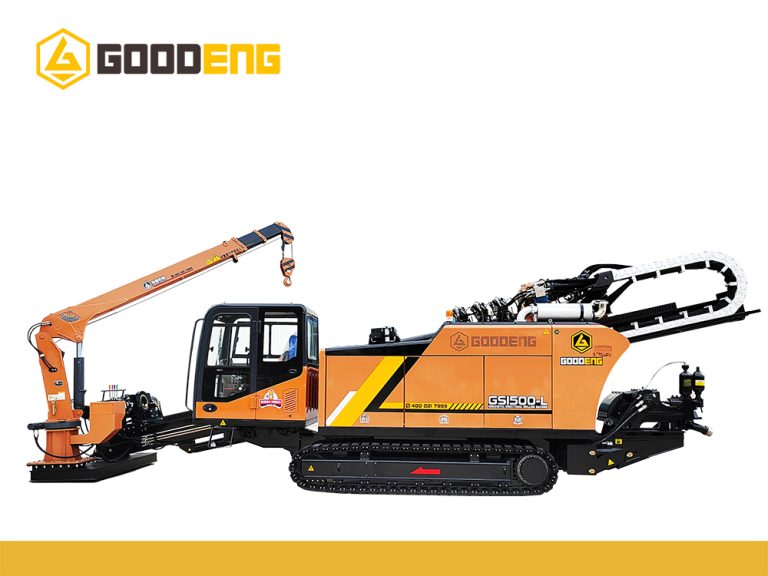

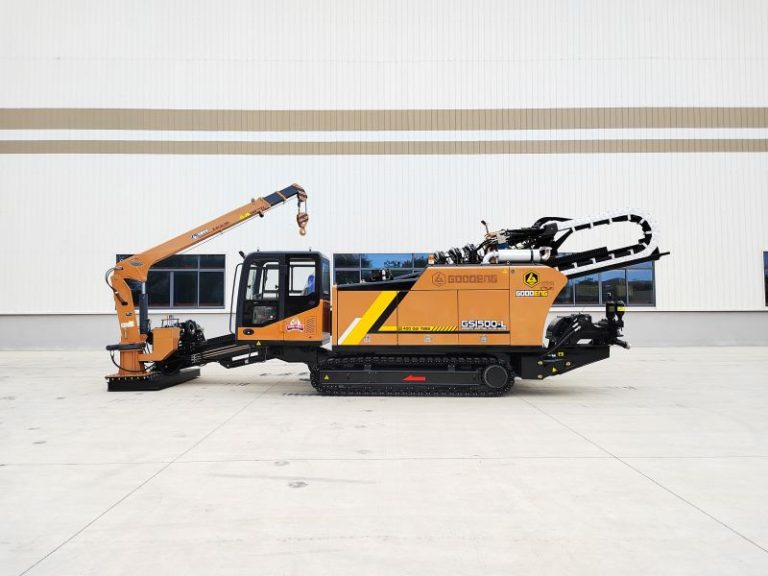

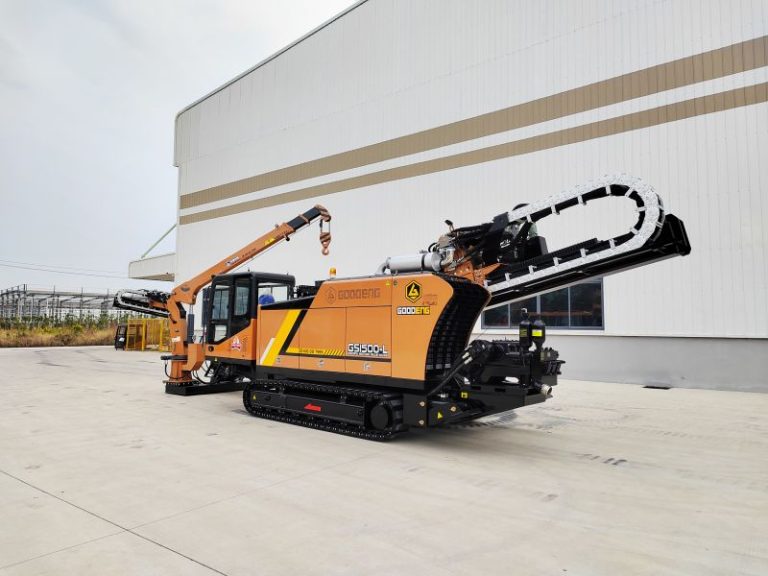

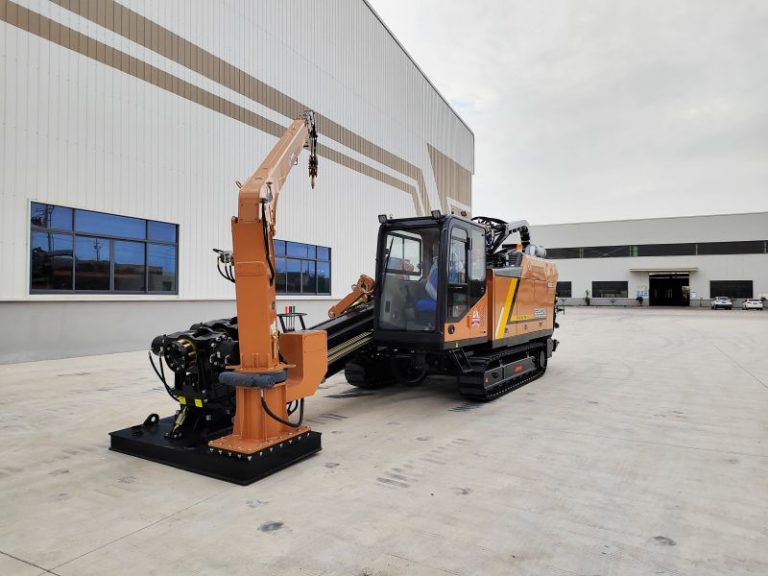

GOODENG GS1500-LS Trenchless HDD Crawler Machine
CHARACTERISTICS
DESCRIPTION
| Weight | 23000 kg | 50706 lbs |
| Dimension (LxWxH) | 11000×2700×3300 mm | 433.07×106.30×129.92 in |
| Max.Thrust&Pullback Force | 1500 KN | 337214 lbf |
| Max.Thrust&Pullback Speed | 39 m/min | 127.95 ft/min |
| Max.Torque | 53000 N·m | 39072 lbf·ft |
| Max.Rotation Speed | 90 r/min | 90 rpm |
| Engine Power | 264 kW | 354 hp |
| Max.Flow of Mud Pump | 800 L/min | 211.3 gpm |
| Walking Speed | 3–5 km/h | 1.86–3.11 mph |
| Max.Mud Pump Pressure | 10 MPa | 1450 psi |
| Entry Angle | 10°–19° | 10°–19° |
| Max.Climbing Gradient | 17° | 17° |
| Drill Rod Size | Φ114/Φ127×6000 mm | Φ4.49/Φ5.0×236.22 in |
| Crane Capacity | 3 Metric Tons | 3.31 Short Tons |
| Suggest Reaming Diameter | ≤ Φ1500 mm | ≤ Φ59.06 in |
| Suggest Crossing Length | ≤1000m | ≤ 3280.84ft |
Shanghai Goodeng International Co., Ltd. offers an advanced power system featuring a specialized Cummins engine tailored for construction machinery. Our product boasts a top-tier hydraulic system, incorporating a Germany Linde closed-type high-pressure piston pump and a French high-pressure piston motor for superior performance, Designed for versatility and efficiency. For optimal control, our vehicle includes both wireless and wired guidance systems. It supports line control traveling and offers two adjustable speed settings: high/low speed. This ensures efficient and reliable performance, even in the most demanding conditions. Experience innovation and dependability with Shanghai Goodeng International Co., Ltd. – your trusted partner in construction machinery
Main Characteristic
- The Cummins turbocharged engine provides robust power and reliable performance, while also offering a lower fuel consumption rate compared to other engines.

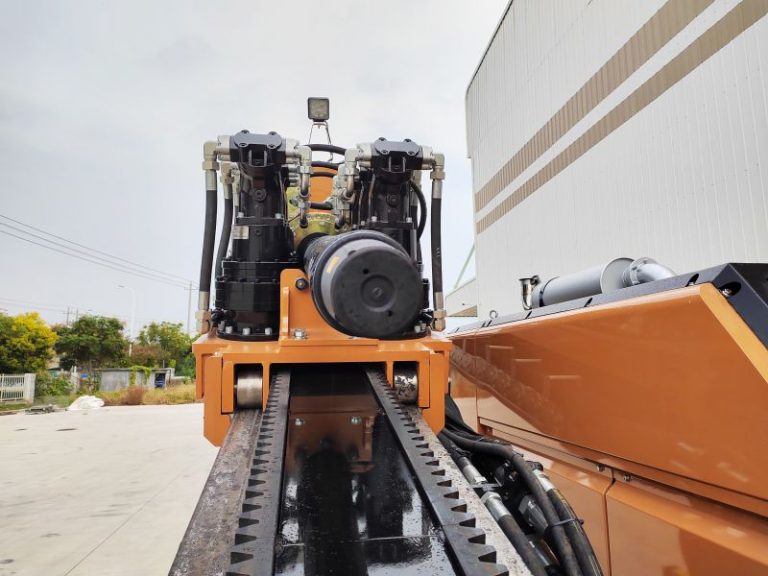

- The pushing and pulling device is equipped with German Rexroth/Sunny motors, which feature a straightforward transmission structure, dependable performance, and multi-stage variable speed capabilities. This allows for pushing and pulling forces of up to 1500kN, industry-leading efficiency and speed;

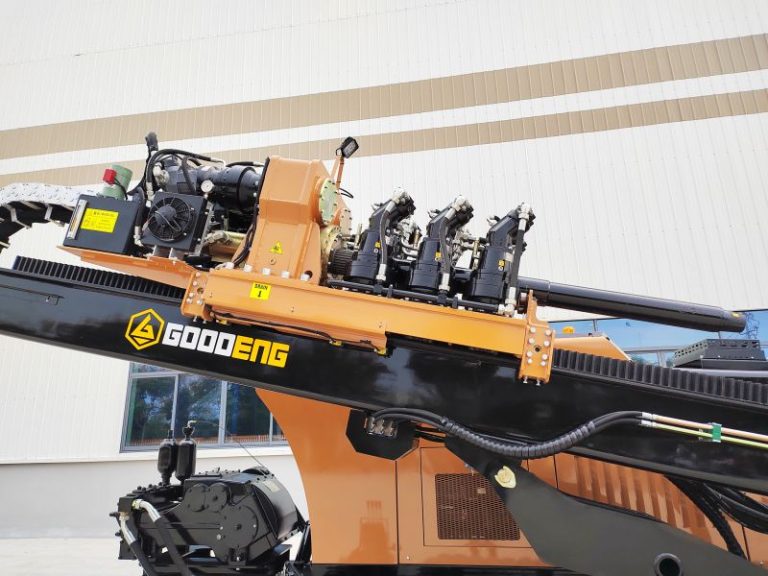

- The rotary device is equipped with a German Rexroth motor, enabling rotary multi-step variable speed, which greatly improves the working efficiency; 5 km/h, no loading required for short-distance transfer.

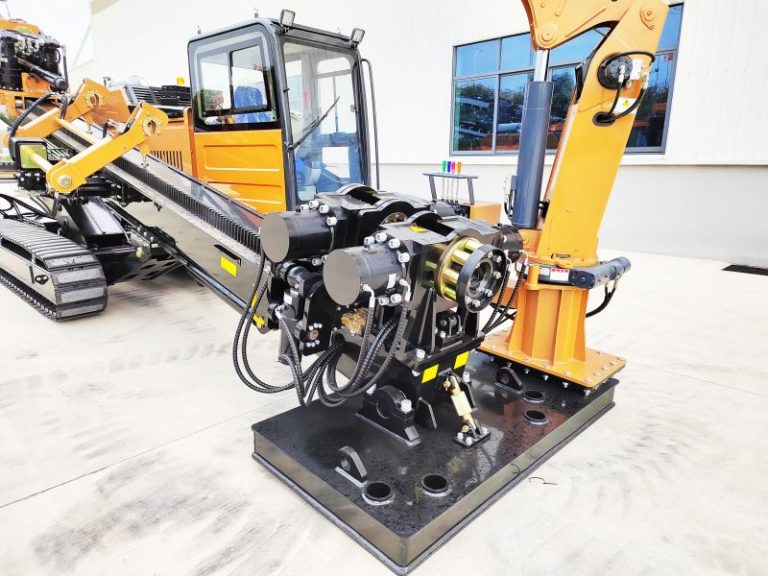

- The low center of clamp not only protects the drill pipe efficiently, but also occupies less space for construction. The front and rear clamps can be separated and replaced according to the specifications of the drill pipe.
- The front and rear clamps can be separated, and the corresponding clamping block can be replaced according to the specifications of the drill pipe.
- The main shaft is floating, which is conducive to the protection of the drill pipe screws. 10°～19°, the low center of gravity of the drilling rig ensures excellent stability.
- The wire-controlled traveling system guarantees the safety of both equipment and personnel, and the drilling rig is highly convenient for traveling, transferring, and loading/unloading trucks.

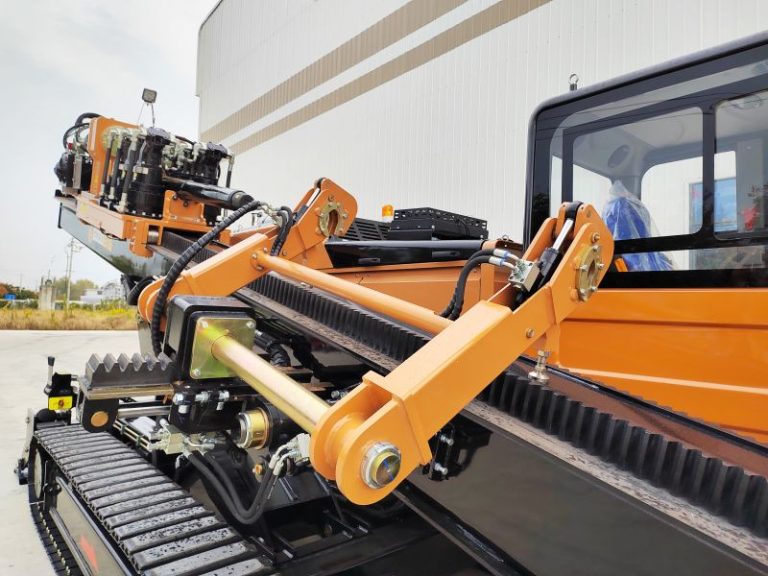

- The Gudeng patented rotary manipulator allows the drill pipe to slide down automatically. The pipe does not need to be unloaded manually, which saves on labor costs.
- The vehicle-mounted operation room is spacious and rotatable, and is equipped with cold and warm air conditioning.
