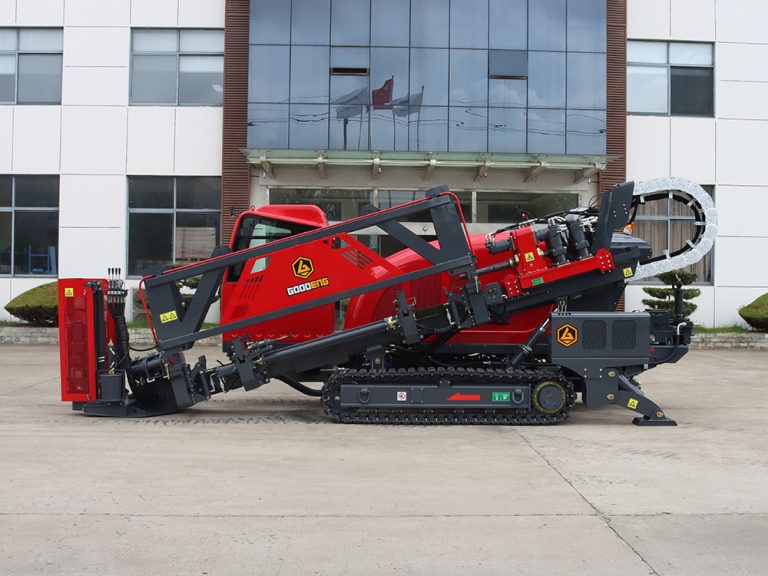

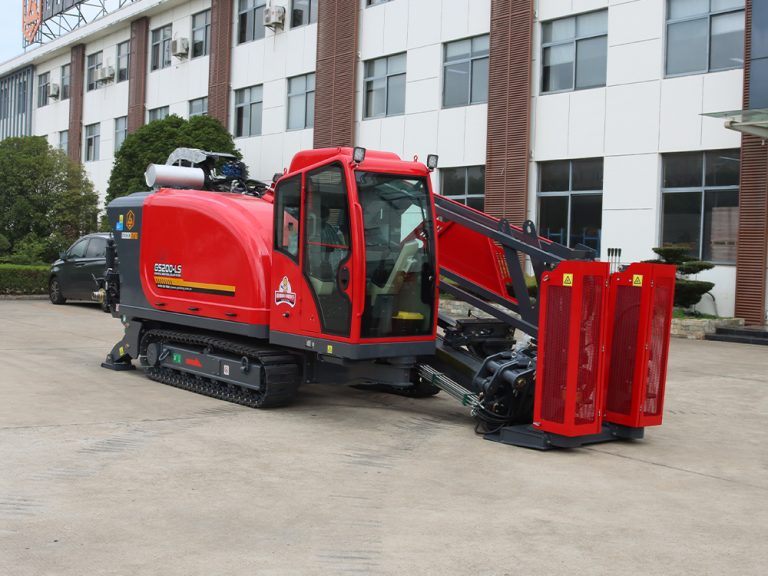

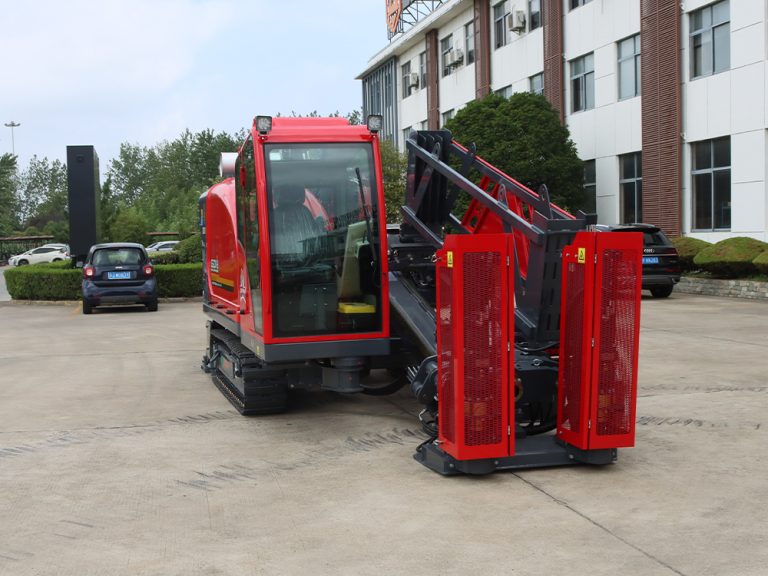

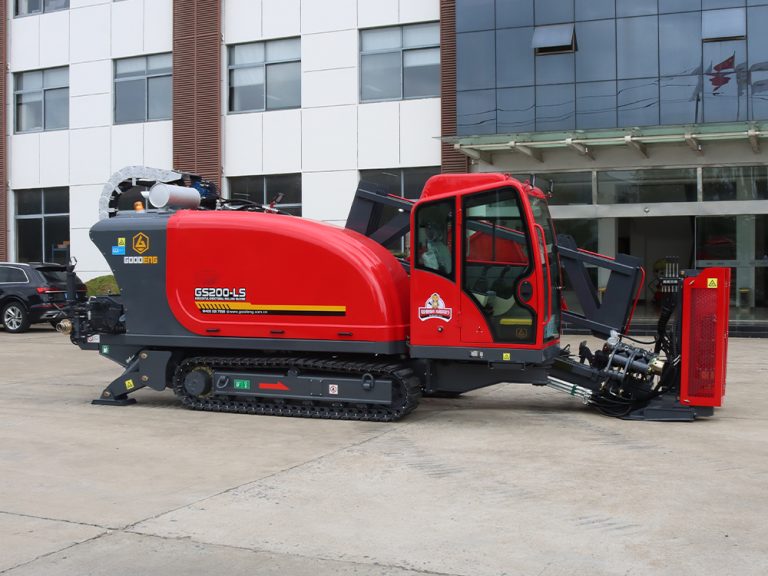

GOODENG GS200-LS Horizontal Directional Drilling Machine
CHARACTERISTICS
DESCRIPTION
| Weight | 8800 kg | 19400 lb |
| Dimension (LxWxH) | 6750×2050×2400 mm | 266×81×95 in |
| Max.Thrust&Pullback Force | 205 KN | 46100 lbf |
| Max.Thrust&Pullback Speed | 60 m/min | 197 fpm |
| Max.Torque | 6500 N·m | 4790 ft·lb |
| Max.Rotation Speed | 230 r/min | 230 rpm |
| Engine Power | 110 kW | 148 hp |
| Max.Flow of Mud Pump | 250 L/min | 66 gal/min |
| Walking Speed | 2.5-4 km/h | 1.6-2.5 mph |
| Max.Mud Pump Pressure | 8 MPa | 1160 psi |
| Entry Angle | 12°-22° | 12°-22° |
| Max.Climbing Gradient | 17° | 17° |
| Drill Rod Size | φ60×3000 mm | φ2.36×11811 in |
| Drill Pipe Box Capacity | 48 pcs(4*12) | 48 pcs(4*12) |
| Recommended Reaming Diameter | ≤ 800 mm | ≤31.5 in |
| Suggest Crossing Length | ≤300 m | ≤984.25 ft |
Our state-of-the-art GS200-LS Professional Compact Directional Boring Machine features durable external rubber plates for enhanced traction, complemented by a user-friendly wire-controlled operation. Experience customizable drilling performance with our adjustable thrust-pullback feature, offering three distinct speeds—high, medium, and low—for tailored operation to suit specific project demands. Designed for comfort and functionality, our rotatable cab includes air conditioning, a wide field of vision, and a plush seat, promoting an enjoyable work environment and reducing operator fatigue.Enhance productivity with our automatic rod-loading box, designed to streamline your drilling process by minimizing manual handling and maximizing efficiency. Elevate Your Drilling Performance Today!, These optimized features position our product as the ideal choice for professionals seeking efficiency, comfort, and precision in their drilling operations. Explore the difference that advanced technology can make in your projects!
Main Performance Characteristic
The machine is equipped with Cummins engine, with high efficiency, large power, low fuel consumption, low noise, and strong ability in construction.
- Rotation adopts American Eaton large torque motor driving directly, with large torque, stable performance, and two gears speed regulation. Thrust&pullback adopts American Eaton motor and three gears speed regulation. The Construction speed is far ahead of other manufactures in the same industry. Driving head provides reinforced power, which expands the scope of drilling construction.
- It is equipped with hydraulic gear pump with military technology. Steel track walks by wire-control, which is convenient for load & unload and transfer.
- Operation console adopts man-machine construction manner with comfortable operation, which greatly reduce workers’ fatigue. The cab has broad vision, and comfortable seat.
- Equipped with Ф60×3000mm drill rod, the machine uses less field area, meeting the requirement for high efficiency construction in small place.
- Electric design is reasonable with low failure rate, which is easy to maintain.
- The drilling machine is beautiful, easy to repair, which fully shows “people-oriented” design vision.
