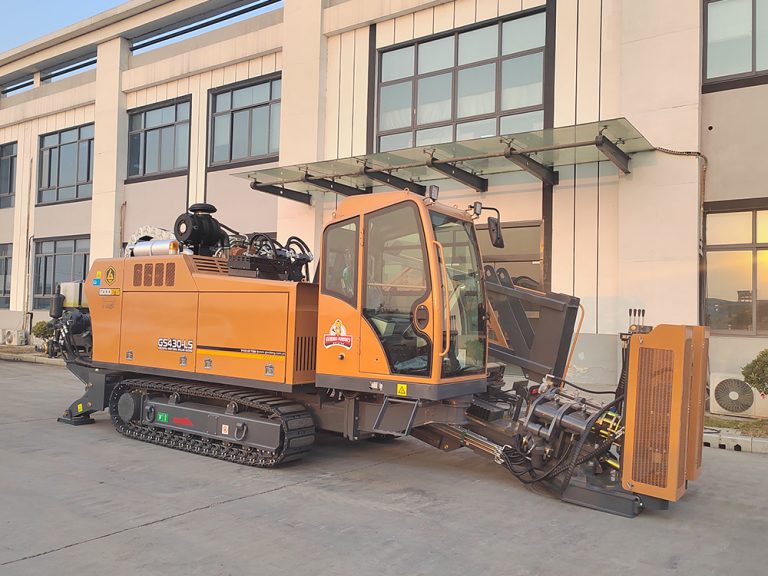

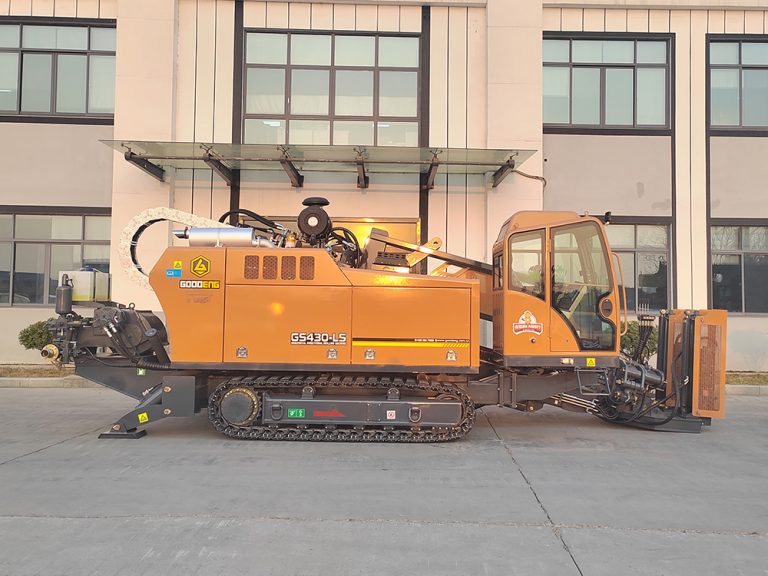

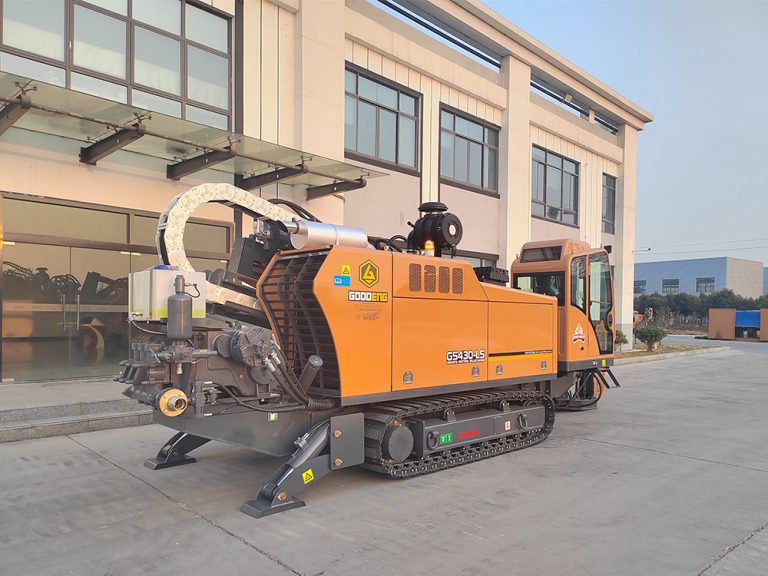

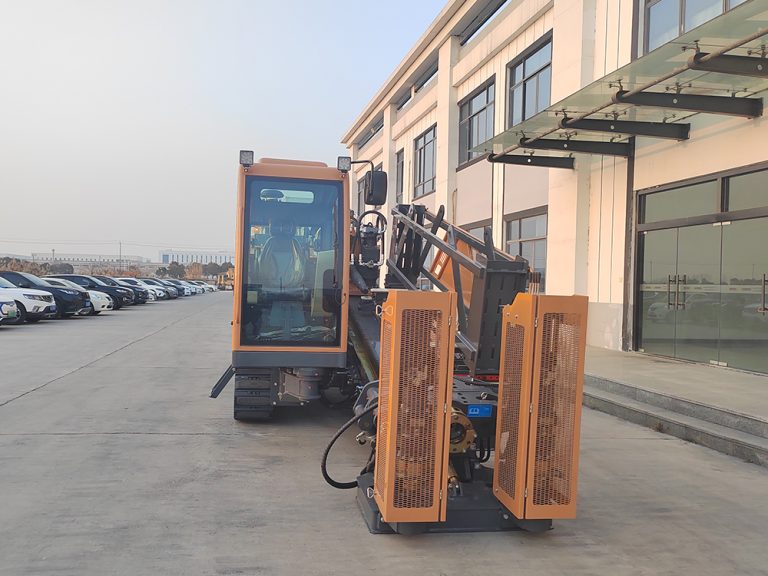

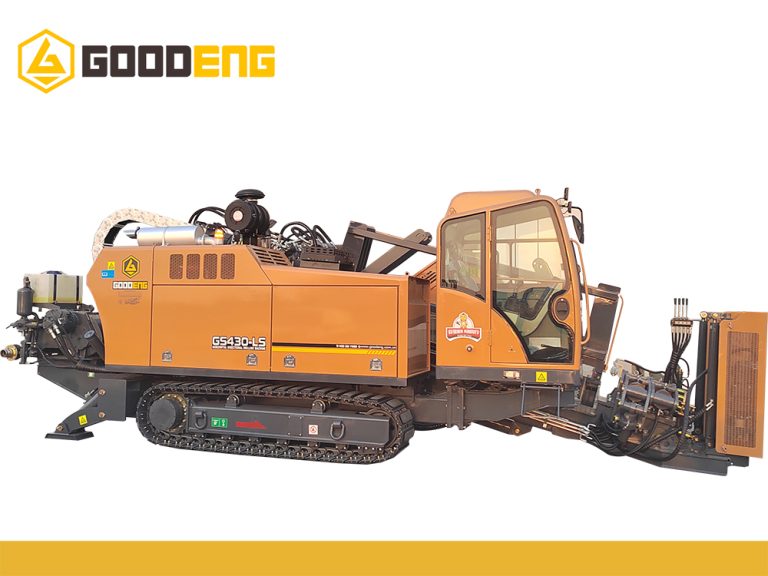

GOODENG GS430-LS Horizontal Directional Drilling Machine
CHARACTERISTICS
DESCRIPTION
| Weight | 13000 kg | 28660 lbs |
| Dimension (L×W×H) | 7300×2250×2270 mm | 287.4×88.6×89.4 in |
| Max.Thrust&Pullback Force | 430/860 KN | 96742/193484 lbf |
| Max.Thrust&Pullback Speed | 53 m/min | 174 ft/min |
| Max.Torque | 19000 N·m | 14013 ft·lb |
| Max.Rotation Speed | 185 r/min | 185 rpm |
| Engine Power | 179 kW | 240 hp |
| Max.Flow of Mud Pump | 450 L/min | 119 gal/min |
| Walking Speed | 3-5km/h | 1.86-3.11 mph |
| Max.Mud Pump Pressure | 8 MPa | 1160 psi |
| Entry Angle | 12°-25° | 12°-25° |
| Max.Climbing Gradient | 18° | 18° |
| Drill Rod Size | φ83×3000 mm | φ3.27 × 118.11 in |
| Suggest Reaming Diameter | ≤φ1350 mm | ≤ φ53.1 in |
| Suggest Crossing Length | ≤650 m | ≤ 2133 ft |
·The versatile and efficient steel crawler .
·This mobility system features external rubber plates and wire-controlled walking, with two adjustable speeds for optimal performance.
·The loading system is equipped with a rotary manipulator and an optional automatic rod-loading box, providing added convenience and efficiency.
·The drilling system offers adjustable thrust-pullback speed in three settings.
Main Performance Characteristic
1. The rotary adopts closed system, pushing and pulling, clamping, walking with automatic variable system, load-sensitive control; its hydraulic system compared with the traditional hydraulic system: work efficiency increased by more than 20%, the system reduces heat generation by about 50%, energy saving equipment by 20%.
2. Cummins special engine for construction machinery is adopted, which is energy-saving, environmentally friendly, highly efficient and powerful;
3. The main beam adopts the structure of four-link amplitude-adjusting beam, which greatly improves the range of guided incidence angle; at the same time, it ensures that the tracks do not leave the ground during the construction of large angle, which improves the drilling efficiency.
At the same time, it ensures that the crawler track does not leave the ground when working at a large angle, which improves the stability and safety of the drilling rig. 4;
4. In-line control traveling system ensures the safety of the drilling rig in the process of traveling, transferring and loading;
5. φ73-φ83 3000mm long drill pipe is applicable, and the body occupies a moderate area, which meets the demand for efficient construction in narrow sites;
6. The main hydraulic components are selected from international first-class manufacturers, which greatly improves the reliability and safety of the product performance;
7. The circuit design is scientific and reasonable, with low failure rate and easy maintenance;
8. The track adopts steel track with rubber plates, which can withstand high loads and meet the needs of walking on different roads;
9. The push and pull adopts rack and pinion structure: high efficiency, long service life, smooth operation and easy maintenance.
10. Equipped with rotary manipulat.
