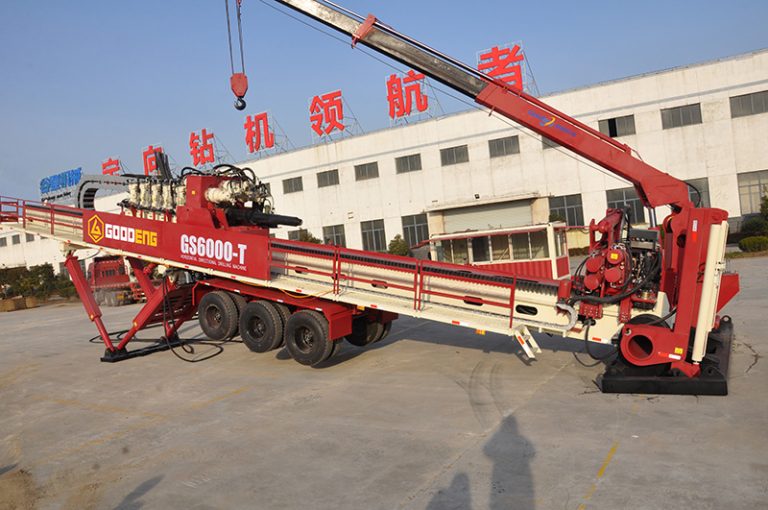

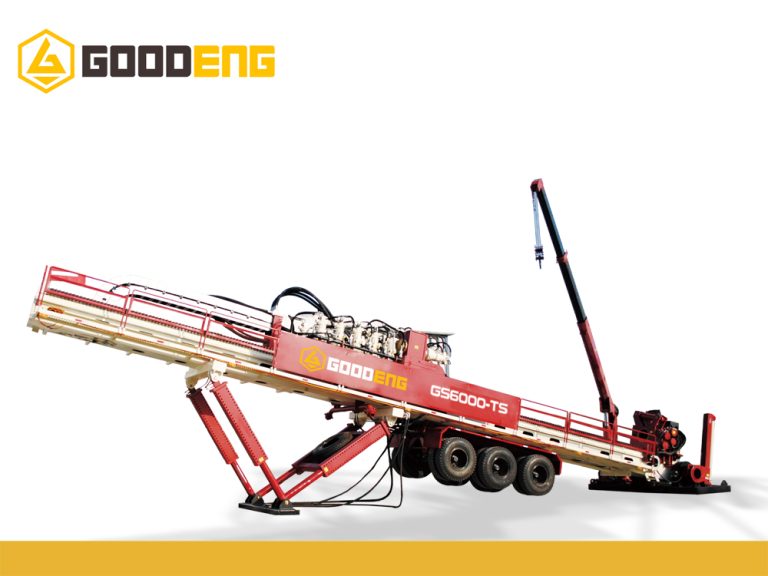

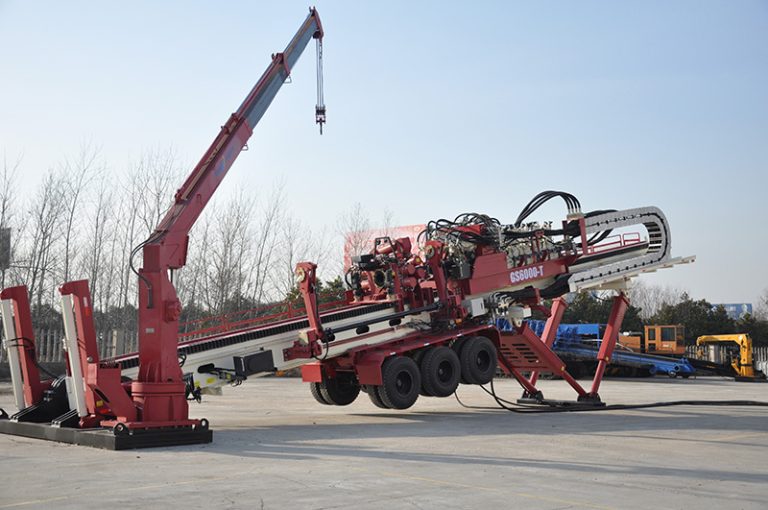

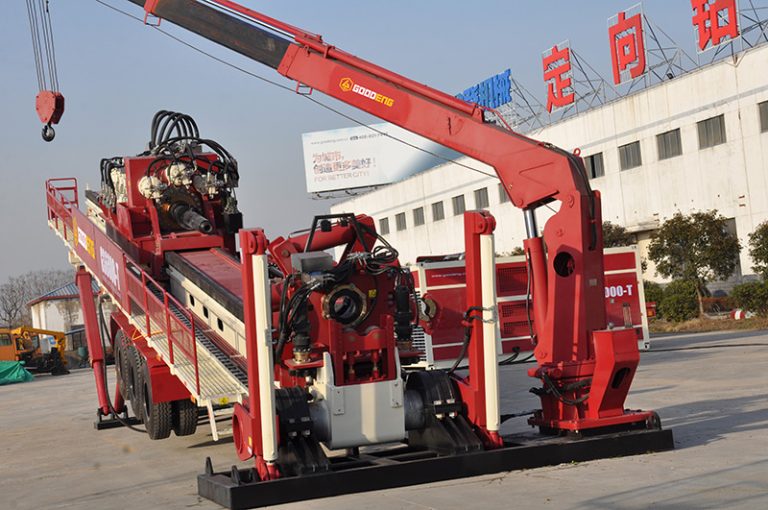

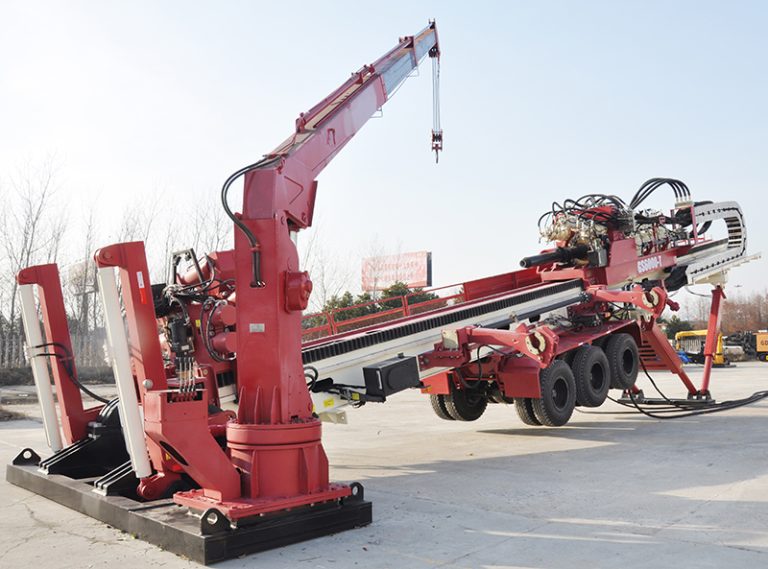

GOODENG GS6000-TS Trenchless Horizontal Directional Drilling/Boring/Tunnelling Machine/Rig No-Dig Machine
CHARACTERISTICS
DESCRIPTION
| Rig Weight | 56000 kg | 123459 lbs |
| Rig Dimension (LxWxH) | 20400 * 2500 * 3740mm | 67 × 8.2 ×12.2 ft |
| Power Station Weight | 16500 kg | 36377 lbs |
| Power Station Dimension | 6050*2500*2600 mm | 19.9*8.2*8.5 ft |
| Operational Room Weight | 3000 kg | 6,614 lbs |
| Operation Room Dimension (L×W×H) | 6050 * 2500 * 2600 mm | 19.9*8.2*8.5 ft |
| Engine Power | 3 * 410 kW | 3*549 HP |
| Max. Working pressure | 35 MPa | 5076 psi |
| Max.Thrust&Pullback force | 6700 KN | 1506281 lbf |
| Max.Thrust&Pullback Speed | 40 m/min | 131 ft/min |
| Max. Torque | 180000 N·m | 132774 ft·lbs |
| Max.Rotation Speed | 90 r/min | 90 rpm |
| Max.Clamp Force | 3800 kN | 854,309 lbf |
| Main Spindle Floating Distance | 110 mm | 4.33 in |
| Entry Angle | 8°-18° | 8°-18° |
| Drill Rod Size | Φ140-Φ219 mm | Φ5.5-Φ8.6 in |
| Drill Rod Length | 9600 mm | 31.5 ft |
| Mud Pipe Channel Diameter | 4 in | 4 in |
| Crane Capacity | 5 Metric Tons | 5.51 Short Tons |
| Suggest Reaming Diameter | ≤ Φ2000 mm | ≤ Φ78.74 in |
| Suggest Crossing Length | ≤2500 m | ≤ 8202.1 ft |
- Patented Structural System: The product features a one-piece structure, a compact appearance, and convenient transportation of the mainframe and power system.
- Loading System: The patented technology cylinder rack rotary manipulator offers stable performance and can be applied to drill pipe models with a diameter ranging from 140mm to 194mm.
- Protection System: Multiple protection rotary and push ramada resist the impact of various working conditions on the motor, improving reliability and motor performance.
- Clutch System: The number of participating motors can be combined freely according to working conditions, reducing construction costs and improving efficiency.
Main Characteristics
- The structure of the whole machine: the main machine and the power system are integrated structure, compact shape, width 3.5m, height 3.6m, meets the domestic and foreign transportation laws and regulations, convenient for transportation.
- Three-stage emission electronically-controlled engine meets the national three-stage emission requirements for construction machinery, and it can flexibly realize dual-engine or single-engine work, which saves energy and reduces consumption.
- Four-point patented clamping technology to improve the rigidity and strength of the structure; compared with the three-point type, there are more cylinders, more contact points and larger area, the clamping force and unloading torque is greatly improved; field maintenance and replacement of the clamping bar is more convenient and quicker; the clamping device can be floated throughout the whole process.
- Automated rod loading mechanism, Gudeng patented technology, mature and reliable, high degree of automation, freeing up the labor force and reducing labor intensity.
